Aluminum Sound Barrier - China

Aluminum panels are often manufactured into sound barriers for lightweight, excellent corrosive resistance and self-support.

Aluminum sound barriers are not only used in traffic areas but also factories and workshops where machines make serious noise pollution.

As an absorptive sound barrier, aluminum panel are designed with various hole patterns such as dotted or slits.

To maximize sound absorptive performance, fillings are required such as EPDM, fiber glass and aluminum foam.

Many sound barriers make full use of advantages of clear noise barrier and aluminum barrier which can absorb noise and also provide support frame to polycarbonate or acrylic sheets.

This sound barrier system will not obstruct light transmission while reducing noise level at utmost.

A freeway sound barrier with aluminum panel at the top and polycarbonate sheet at the bottom.

ASB-1: A composite noise barrier of aluminum and transparent sheet.

Why select aluminum panel as sound barrier?

Self-supporting system without requiring additional frames.

Light weight system makes installation easy.

High sound absorptive capability.

Its special corrosive resistance result in durable noise barrier, even in coastal areas.

Long durability.

Economic cost.

Custom sizes and shapes are available.

Where aluminum sound barrier used?

Industrial noise control around electric transformers, chillers and diesel power generator stations.

Integrated with transparent sound barrier along bridges, overpasses, railways, highways and roads.

Particularly ideal for lining underpasses, tunnels, and their entry and exist areas.

Lining for reverberant barriers.

Residential and commercial soundproofing and decorative walls.

Key specifications of aluminum sound barrier:

Sound barrier panel thickness: 80 mm, 100 mm, 120 mm.

Sound barrier size: 2500 × 500 × 80 mm, 2500 × 500 × 100 mm, 2500 × 500 × 120 mm.

Sound barrier metal plate thickness: 0.5-1.2 mm.

H-post: 100 × 100 × 6 × 8 mm, 125 × 125 × 6.5 × 9 mm, 150 × 150 × 7 × 10 mm, 175 × 175 × 7.5 × 11 mm.

Sound barrier flange plate: 250 × 250 × 10, 300 × 300 × 10, 350 × 350 × 10, 400 × 400 × 10 mm.

Sound barrier panel type: shutter, perforated.

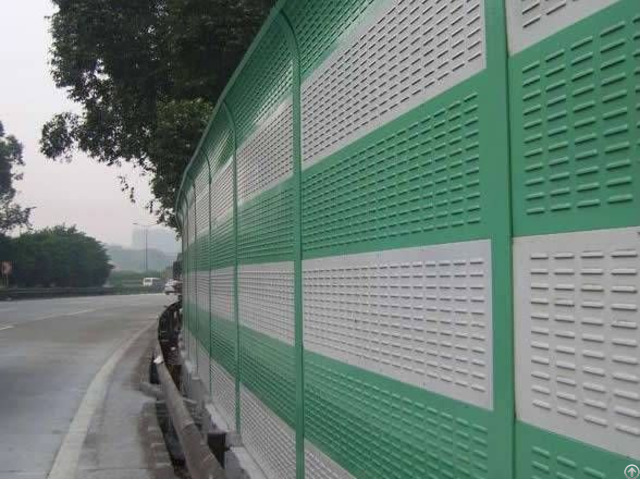

Green and white aluminum sound barrier along a heavy freeway.

ASB-2: Aluminum sound barrier are often found in heavy traffic areas for its excellent absorptive capacity and easy installation feature.

A highway sound barrier made from aluminum perforated panel.

ASB-3: Aluminum soundproofing panels with small perforated holes maximizing sound absorbability.

Company Contact:

• Posted By: Hebei Huanyu Noise Barriers Co., Ltd.

• Phone: 86-318-32881897

• Address: East industrial Zone, Anping, hengshui , Hebei , China

• Email:

• Website: https://www.noisebarriers.org/

• Business Description: Since its foundation in 2000, Hebei Huanyu Noise Barriers Co., Ltd. has been in the field of noise controlling for more than 10 years.

  It has won a lot of customers acceptance and trust for providing premium soundproofing products and considerable after-sales service.

  Our engineers can recommend a couple of cases for you or your customer.

  If you have any problem about controlling noise, just call or email us.

  What is the noise damage to health?

  With the increasing numbers of vehicles and economy development, noise pollution problem has been so popular.

  Generally speaking, the damage from noise depends on the level of noise and the length of time you listen to the noise.

  Noise levels can be measured in decibels or dB.

  The higher the decibel level, the worse to hearing loss.

  It is known that sounds that are higher than 85dB can cause permanent hearing loss.

  What noise barrier systems you can choose?

  Clear sound barrier

  Apart from reflecting noises backward, clear sound barrier also preserves the views along the way.

  It will not disturb your enjoyment of the country side view when you are on a bus, train or car.

  Plus, 90% light transmission will not darken the road.

  Aluminum and PVC

  Aluminum and PVC sound barrier can be fabricated into reflective and absorptive barrier depending on the surface condition.

  Smooth surface can reflect the bulk noise.

  Surfaces with holes or slit will absorb noise.

  Gabion sound wall

  Gabion sound wall is a special acoustic barrier system.

  Its special stone texture, effective sound abatement and easy installation contribute to popular choice for commercial and residential area.
