Demister Pads For Sugar Mills - China

Demister pads for boilers of sugar mills are designed with high temperature resistance, chemical inertness and excellent filtration efficiency.

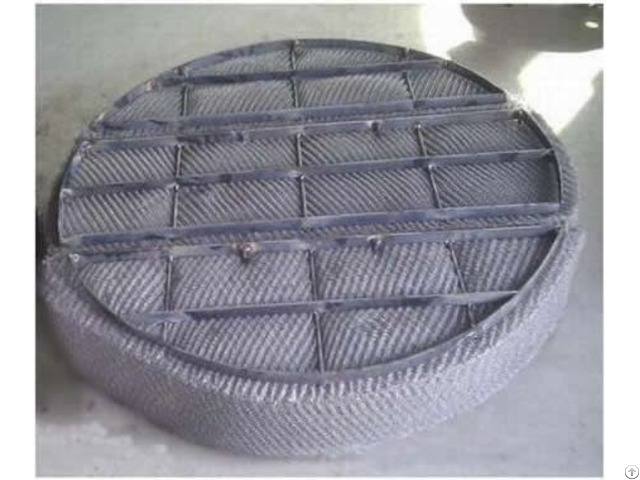

Demister Pad for Sugar Factory

Diameter of demister pad 2000 mm

Thickness of pad: approx 150 mm ( 6 inch )

Density of pad: 80 kg/m3

Material : SUS 304

For 2 bodies of 1st effect quintuple effect evaporator of Diameter 5500 mm and ht above calandria 8000 mm SPECIFICATION OF Demister Pads FOR 1x40 T/Hr BOILER OF SUGAR MILLS DESIGN PARAMETERS: To be installed in boiler steam drum for separating the water droplets from saturated steam.

Steam flow rate: 40 ton/hr.

(Normal)

Operating pressure: 44-45 Kg/cm2

Operating temperature: 265 °C

Liquid density: 788 Kg/M3

Vapour density: 22.7 Kg/M3

Company Contact:

• Posted By: YINGDU DEMISTER PADS CO.

• Phone: +865342328351

• Address: 81 New Development Zone, Dezhou, Shandong, Dezhou , Shandong , China

• Email:

• Website: https://demisterpad.net/

• Business Description: Yingdu is a professional manufacturer and supplier of Demister Pads.

  Our major filter products include ss wire mesh demister pads 304, 316, 347 and other grades, vane type demister pads, copper knitted mesh, monel and inconel knitted mesh demisters and PP demisters of various sizes.

  Yingdu Demisters are populary used in petroleum refining, petrochemical industry, gas chemistry, synthetic chemistry, salt and sugar manufacturing and other chemical industries.

  Our demister pads mainly work in the following fields:

  1 - Vacuum Tower - The treatment quantity by the demister goes up by 35%.

  The quality of oil gas is improved.

  2 - Absorber - Some gasoline plants use a glycol absorber so the installation cost is being repaid

  within a month.

  3 - Knockout Drums and Separators - If Demister is used, ⅓inch drum is sufficient.

  4 - Gas Separator Vessels - Hydrocarbon in gases is collected so gas of 1/0.1 billion purity is produced out.

  5 - Evaporator - Product loss goes down and purity is remarkably improved.

  6 - Scrubber - In the field of caustic soda, the demister is used to prevent air pollution.

  7 - Distillation Column

  For quality demisters or mist eliminators, contact to import from Yingdu Demister Pads Co.

  Our Products:

  - Mist Separators

  - Baffled Type Mist Eliminators

  - Distillers Demister Pad

  - Vessel Demister Pad

  - Strainer Demisters
