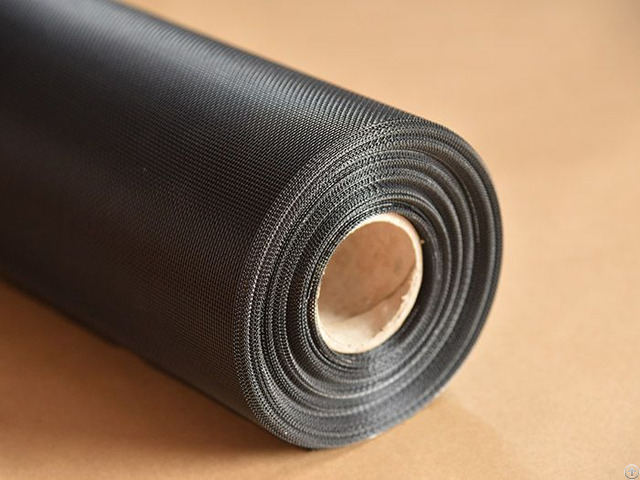

Epoxy Coated Wire Mesh - China

Product Brief Introduction:

Epoxy coated wire mesh is referred to epoxy mesh.

The manufacturing process of epoxy mesh is to use the principle of electrostatic spraying to absorb eco-friendly epoxy resin powder on the surface of the wire mesh woven from different metal wires.

After a certain period of high temperature curing, the epoxy resin powder is melted and covered on the substrate.

A dense protective layer is formed on the surface of the mesh.

Epoxy powder is divided into indoor and outdoor types, and special powders can be customized and developed according to customer requirements.

The substrate mesh usually includes low carbon steel mesh, aluminum alloy mesh and stainless steel mesh.

Epoxy mesh manufacturing standard: GB/T 17492-2019

Woven pattern: Plain wave rough edge / selvaged edge

Features of Epoxy Coated Wire Mesh:

After epoxy coating, the interweaving point of the metal mesh is fixed, the warp and weft are vertical, the mesh holes is uniform, not easy to loose and deform, the support for the filter paper is strengthened, the mesh surface is soft, easy to fold and form; the coating thickness is uniform with even and consistent color.

Application and Categories of Epoxy Coated Wire Mesh:

According to different Application, epoxy mesh can be divided into industrial epoxy mesh and civil epoxy mesh.

Industrial epoxy mesh mainly refers to aluminum alloy epoxy mesh and low-carbon steel epoxy mesh, which are mainly used as the filter element support mesh of the filter, also known as hydraulic filter element protection mesh, hydraulic filter element metal mesh.

Civil epoxy mesh mainly refers to stainless steel epoxy mesh, which is mainly used in high-end residential and commercial building as security window screens.

Advantages of Jiushen Epoxy Coated Wire Mesh:

After coating, the mesh is square without deformation and the surface is flat with the maximum undulating height on the platform ≤10mm.

The powder coating amount is controlled at 20-35g/㎡, with moderate interleaving points.

The width of finished product can reach 1, 600mm.

The surface treatment powder adopts low temperature fast curing oil-resistant matting resin paint (160℃/90s) and low temperature curing weather-resistant matting polyester paint (160℃/90s).

The powder has obtained RoHS and REACH certification.

It is resistant to oil immersion and corrosion.

It can pass the detection of various brands of hydraulic oil media around the world at different temperatures and times.

The coating surface has no change.

It is suitable for special hydraulic filter products of high temperature and high pressure.

Weather corrosion resistance, according to ASTM B117-09 salt spray test standard, continuous test 96H coating surface unchanged, suitable for use in harsh environment air filter and outdoor environment.

Strong adhesion, can pass H grade pencil test, 1kg/50cm impact test, scratch test, anti-fatigue test.

High bending resistance, can be folded through a steel rod with a radius of curvature of 1mm, no cracks on the surface

Industrial selected high-quality steel and wire drawing annealing process, combined with the new weaving process, the mesh surface is soft, and the elastic modulus is low.

After coating, it’s easy to fold and shape.

The warp and weft wires are firmly bonded after the product is processed and are not easy to fall off.

The edges will not fall off after slitting and cutting.

The adhesion force of the coating interlacing point can reach 0.7kg.

Company Contact:

• Posted By: Hebei Jiushen Wire Weaving Co., Ltd.

• Phone: 86-18231858969

• Address: Jiatun Industrial Park, Hengshui , Hebei , China

• Email:

• Website: https://www.jswireweaving.com

• Business Description: Covering an area of 20,000 square meters, Hebei Jiushen Wire Weaving Co., Ltd. is located in Anping County, where is 200km away from Shijiazhuang International Airport and Tianjin port with superior concentrated industry & convenient transportation.

  Having nearly 100 sets of manufacturing equipment mainly imported weaving looms, Jiushen has the leading weaving technology and equipment upgrading ability in wire mesh industry.

  After independent innovation & upgrading, Jiushen mesh holes are uniform with flat surface, and production efficiency is greatly improved with yearly output of 8 million ㎡.

  The single weaving width can reach 2.7m

  Jiushen main products include stainless steel mesh, aluminum alloy mesh, epoxy coated mesh, copper mesh, low carbon steel mesh.

  Widely used in window screen projects, automotive manufacturing, petrochemical processing, plastic extrusion, food and beverage, pharmaceutical manufacturing etc.

  With complete testing equipment and laboratories, Jiushen main products support mass standard production and private customization, as well as non-standard product research and development capabilities.

  Since start of the wire weaving journey in 1998, Jiushen has been focusing on the world based in Anping, continuously researching and upgrading facilities and products.

  Adhere to quality-oriented, serve customer and assist customer greater achievement.

  Relying on the ISO9001 quality management system, Jiushen strictly implement industry standards and relevant laws and regulations.

  Jiushen professional technical quality team carries out standardized control of raw materials, production process and finished products to provide customized products and services for our customers, which wins stable customers and markets.

  With the continuous expansion of market share and high-quality characteristics, we are committed to build "Jiushen Wire Weaving" as a famous brand in the field of wire mesh.

  Why choose us:

  Expert customer service:

  A call to Jiushen takes you directly to an enthusiastic and knowledgeable customer service – never passed around from person to person.

  You will be pleasantly surprised at the speed, efficiency and accuracy of our assistance.

  We will make you a hero to your customer!

  Professional:

  Start wire weaving since 1998 - Efficient production resource control ability; Complete production takt and supply chain system; Deep understanding and knowledge of mesh products, market and industry, and a clear insight and understanding of the future development of the industry.

  Quality:

  Implement ISO9001 quality management system; Professional technical quality team carries out standardized control of raw materials, production process and finished products, and after-sales service.

  Innovation:

  With more than 20 years mesh knowledge and experience, Jiushen is capable of product and facilities research and development.

  And on-site technical service is available at any time.

  Development History:

  1998, the founder invested 2 sets of domestic K72 improved equipment to weave window screen series products and entered the wire mesh market

  2000,expand the scale of weaving equipment to 10 sets, and assigned appropriate personnel for related posts

  2006, again expand the scale of weaving equipment to 20 sets, and equipped relevant inspection equipments

  2010, start to introduce high-speed and wide-width equipment to improve, upgrade, and put into production.

  The equipments were gradually upgraded

  2015, The high-speed wide-width equipment were completely updated and entered mass production.

  Meanwhile, the auxiliary functions of the factory was gradually established.

  The inspection, processing and packaging capabilities was initially formed.

  Besides, the supply chain system was gradually established to improve the quality and TPM management system.

  2020, got the license for export and import.

  Change from OEM, ODM & agency export model to self-support export and import.

  To further improve mesh products quality and enter the world of high-end products field, Jiushen plans to introduce imported DORNIER weaving looms, which is currently under business negotiation.
