Expanded Wire Mesh Xhwire - China

Material: Stainless steel plate, Aluminum plate, Copper plate, Iron Plate, Galvanized plate and Al-Mg alloy, etc.

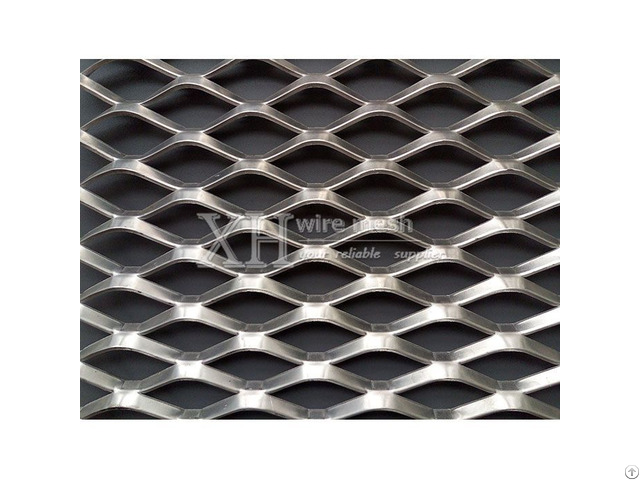

PRODUCTS DESCRIPTION Expanded wire mesh is one type of metal screen.

Its material can be galvanized plate, iron plate, stainless steel plate and aluminum plate, etc.

It can be used in building, petroleum industry as the filters.

Galvanized expanded metal can be used as the filters for the air and grease.

About the powdered coated expanded metal, its surface can be coated by green color, white color, black color and sky blue.

Types of hole: Diamond, scale hole, hexagon, fancy, tortoise shell, etc.

LWD: 4.5-200mm SWD: 2.5-80mm Thickness: 0.5-8mm Strand width: 0.5-10mm SWM: Center from node to node of the length of the short diagonal.

LWM: Center from node to node of the length of the long diagonal.

SWD: The length of the short diagonal of the hole.

LWD: The length of the long diagonal of the hole.

Strand: Make a silk stem length of the metal plate used.

Bond: Two-node connections.

Surface treatment: PVC coated, Galvanized, Epoxy resin, anodic oxidation, anti-rush paint etc.

The following is some specifications for the expanded metal: thickness of plate nominal size of mesh size of standard products Calculated weigth

(mm) (mm) (mm) THICKNESS SWD LWD STRAND WIDTH LENGTH kg/m2

0.8 10 25 1.12 1.41 12 30 1.35 15 40 1.68 2 18 50 2.03 1800 3600 22 60 2.47 2000 4000 29 80 3.26 2500 5000 4.42 36 100 4.05 44 120 4.95 5.29

3 36 100 4.05 44 120 4.95 55 150 4.99 2000 5000 4.27 2500 6400 65 180 4.6 2000 6400 3.33 2500 8000 4 22 60 4.5 1500

|

2000 2000-3000 12.84 30 80 5 2000-4000 10.46 38 100 6 2000-4500 9.91

5 24 60 6 2000-3000 19.62 35 80 6 2000-4000 14.71 38 100 7 2000-4500 14.67 56 150 6 2000-6000 8.41 76 200 6 2000-6000 6.19

6 32 80 7 2000-4000 20.6 38 100 7 2000-4500 17.35 56 150 7 2000-6000 11.77
