Flc 2000 48 30 Pwp - China

Replacement Screens for FLC 2000 / 48 × 30 Shale Shakers – PWP

Technical Parameter Material: stainless steel 304/316/316 L.

Construction Type: PWP (perforated wear plate).

Perforated Mesh Shape: rectangle/hexagon.

API RP 13C Designation: API 120 – API 400.

Size: 1050 × 695 mm.

Weight: 4.6 kg.

Series: DX, DF, HP optional.

Color: green.

Package: 2 pcs per carton, packed in wooden case.

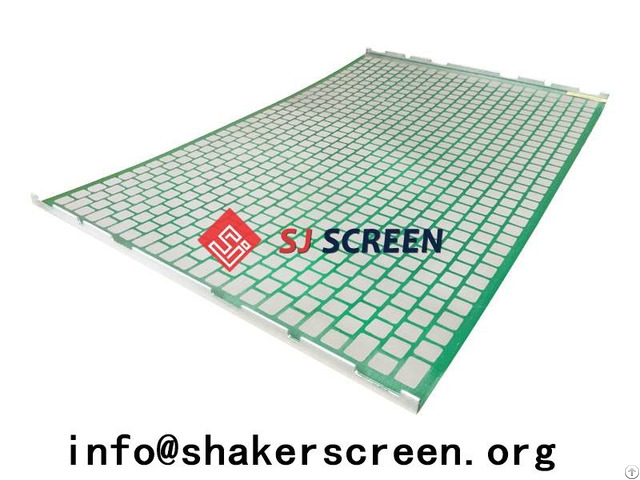

Replacement PWP shaker screen for FLC 2000/48-30 shale shaker.

SJ-PWP 2000 shale shaker screens, also famous known as 48-30 screens, are compatible with FLC (Flo-Line Cleaner) 2000 series shale shakers.

It is a hook strip flat type shaker screen, which is constructed of multiple stainless steel 304 or 316 wire mesh cloth layers.

And then bonded to a rectangular or hexagonal perforated metal plate for added support and facilitation of repair.

Adaptable Shale Shaker Model SJ-PWP 2000 shaker screens are used as the substitute screen for FLC (Flo-Line Cleaner) 2000 3-panel shaker.

FLC (Flo-Line Cleaner) 2000 4-panel shaker.

48-30 shale shaker.

FLC (Flo-Line Cleaner) 2000 series mud cleaners.

FLC Plus, FLC with AWD, HI-G dryer.

Competitive Advantage

Manufactured according to the API RP 13C (ISO 13501).

Top quality stainless steel wire mesh for longevity.

Increase shaker capacity and reduce mud loss.

Scientific & reasonable cost control system for competitive price.

Higher flow rates without sacrificing cut point integrity.

Adequate inventory in the shortest time to meet customers' demand.

Warranty Period: 1 year.

Working Life: 400-450 hours.

Performance Parameter

Download Catalogue

Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Layer No.

Non-Blank Area (sq.

ft)

SJ-PWP 2000-A325 DF API 325 0.29 44 2/3 5.3

SJ-PWP 2000-A270 DF API 270 0.31 57 2/3 5.3

SJ-PWP 2000-A230 DF API 230 0.59 68 2/3 5.3

SJ-PWP 2000-A200 DX API 200 0.73 73 2/3 5.3

SJ-PWP 2000-A170 DX API 170 0.85 83 2/3 5.3

SJ-PWP 2000-A140 DX API 140 1.43 101 2/3 5.3

SJ-PWP 2000-A120 DX API 120 1.46 134 2/3 5.3

SJ-PWP 2000-A100 DX API 100 1.8 164 2/3 5.3

SJ-PWP 2000-A80 DX API 80 2.48 193 2/3 5.3

SJ-PWP 2000-A70 DX API 70 2.67 203 2/3 5.3

SJ-PWP 2000-A60 DX API 60 3.56 268 2/3 5.3

SJ-PWP 2000-A50 DX API 50 4.19 285 2/3 5.3

SJ-PWP 2000-A40 DX API 40 6.77 439 2/3 5.3

SJ-PWP 2000-A35 DX API 35 7.24 538 2/3 5.3

SJ-PWP 2000-A20 DF API 20 14.35 809 2/3 5.3

* D100: Particles this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No: This represents the ease with which a liquid can flow through the screen.

Larger values represent higher volume handing.

Show Details

The back side picture of replacement shale shaker screen for FLC 2000/48-30 PWP.

FLC 2000/48-30 PWP back view The front view picture of replacement shale shaker screen for FLC 2000/48-30 PWP.

FLC 2000/48-30 PWP facade view The close up picture of replacement shale shaker screen for FLC 2000/48-30 PWP.

Rectangular perforated wear frame Remarks: , FLC 2000, PWP, DX, DF, HP are marks of Corporation.

ShengJia only produces the replacement screens but not original from .
