High Palisade Fencing - China

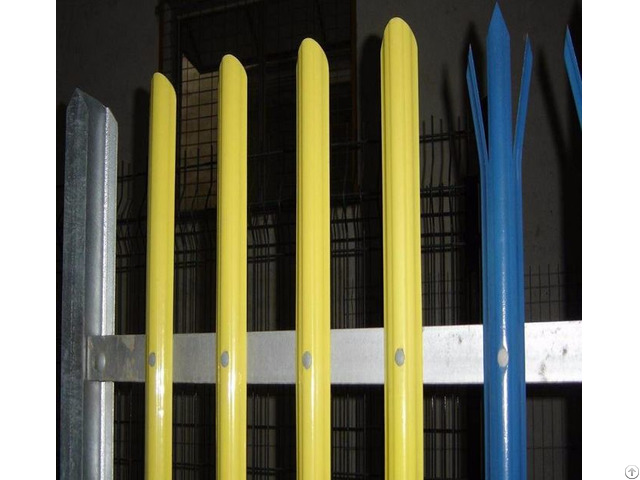

Options on pales are preferred in three types, 2mm w section, 2.5mm w section and 3mm w section.

2.4 high hot dip steel palisade

Posts 100x55

Rails 50x50x6

Pales 3mm D with an alternative 2mm W

With all accessories.

Multicolor Metal Palisade Fence Panels 1-4.2m Height Above Ground For Garden

Palisade fencing is the most popular choice for locations requiring a higher level of security and vandal resistance, and can be seen protecting premises of many different types throughout the UK.

Steel palisade fencing is especially popular for schools and industrial sites because of its high damage resistance and the fact that it is so difficult to climb.

Panel height: 8, 10, 12.

Pales: 13 ga.

O/C Spacing: 5-15/16"

Rails: 2" TS x 14 ga.

Post: Optionally available with base plates for bolt-down or cranked over walls.

Also available with bracket extensions for barbed wire or razor wire.

Size: 100 x 55mm/100 x 44mm.

Rails: Steel angle rails punched for pale attachment.

Connected with 12mm square cup bolts and anti-vandal permacone (snap-off) nuts.

Size: 40mm x 40mm/ 45mm x 45mm/ 50mm x 50mm.

Pale tops: Split-tripple point or single point for high security.

Rounded or rounded and notched for safety.

Fittings: Rails and pales are fitted using 'rivets & collars' or rounded bolts with permacone nuts (snap-off / anti-vandal).

Link Plates: Link plates, fit through the holes is the steel fencing posts and join the rails together.

High Strength Metal Palisade Fencing Heat Treated Pressure Treated Wood Type

Secrity Beautiful Metal Palisade Fence / Garden Fence Palisade fencing specification:

Height: 1.2m, 1.5m, 1.8m, 2.0m, 2.1m, 2.4m, 2.7m, 3.0m, 3.6m.

Post Dimensions: 102x44 or 100x55, 127x76.

Rail Dimensions: 40x40x6mm, 45x45x6mm, 50x50x6mm.

Support Legs: 1, 2.

Corrugated Steel Palisades: W - 2.0mm or D - 3.0mm, W - 2.5mm or D - 3.5mm.

Frame Material: Metal

Metal Type: Low carbon steel wire

Frame Finishing: PVC Coated

Pressure Treated Wood Type: Heat Treated

Material: hot and cold steel section

Panel Width: 65mm, 71mm, 77mm, etc

Panel Height: 1.8m, 2.0m, 2.4m, etc

Finished: Hot-Dip Galvanized, Galvanized then PVC coated.

Color Range: Green, Black, White, etc.

Item: Palisade Fence

Finished: Hot-Dip Galvanized, Galvanized then PVC coated
