Kemtron Kpt 28 Series - China

Replacement KEMTRON 28 Series Shale Shaker Screen, API 16 – API 325

Technical Parameter Mesh Material: stainless steel 304/316/316 L.

Frame Material: Q235 steel/PT.

Screen Type: XL, XR.

Size: 1250 × 715 mm.

Weight:

Steel frame: 14 kg.

Composite frame: 16 kg.

API RP 13C Designation: API 16 – API 325.

Package: packed in paper carton, shipped by wooden case.

Replacement shaker screen for KEMTRON 28 series shale shaker.

SJ-KPT-28 shaker screens manufactured by ShengJia are all API RP 13C compliant to ensure the most accurate cut-point designation.

This type of screen consists of 3 or 4 layers of 304/316 stainless steel wire mesh cloth and different layers with different density for optimal separation effect.

We adopt highest quality stainless steel screen cloth to maintain a long screen life in the harsh drilling conditions.

Adaptable Shale Shaker Model SJ-KPT-28 shaker screens are used as the substitute screen for KEMTRON KPT 28 shale shaker.

Competitive Advantage

Steel frame and composite frame optional.

100% interchangeable with OEM brands screen panel size.

SS 304/316 wire mesh cloth does not rust or delaminate.

Manufactured according to the API RP 13C (ISO 13501).

Scientific & reasonable cost control system for competitive price.

Adequate inventory in the shortest time to meet customers' demand.

Warranty Period: 1 year.

Working Life: 400–450 hours.

Performance Parameter

Download Catalogue

Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Non-Blank Area (sq.

ft)

XL XR XL XR

SJ-KPT-28-A325 XL API 325 0.44 - 44 - 6.2

SJ-KPT-28-A270 XL/XR API 270 0.38 0.48 56/ 52 6.2

SJ-KPT-28-A230 XL API 230 0.48 - 62 - 6.2

SJ-KPT-28-A200 XL/XR API 200 0.65 0.56 81 70 6.2

SJ-KPT-28-A170 XL/XR API 170 0.85 0.89 92 887 6.2

SJ-KPT-28-A140 XL/XR API 140 1.05 0.75 100 104 6.2

SJ-KPT-28-A120 XL API 120 1.27 - 126 - 6.2

SJ-KPT-28-A100 XL/XR API 100 1.34 1.6 140 145 6.2

SJ-KPT-28-A80 XL/XR API 80 1.86 1.82 171 173 6.2

SJ-KPT-28-A70 XL/XR API 70 2.35 2.24 219 225 6.2

SJ-KPT-28-A60 XL/XR API 60 2.95 3.37 266 262 6.2

SJ-KPT-28-A50 XL API 50 2.69 - 311 - 6.2

SJ-KPT-28-A35 XL API 35 7.88 - 488 - 6.2

SJ-KPT-28-A20 XL API 20 22.76 - 783 - 6.2

SJ-KPT-28-A16 XL API 16 34.51 - 1146 - 6.2

* D100: Particles this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No: This represents the ease with which a liquid can flow through the screen.

Larger values represent higher volume handing.

Show Details

Back view picture of KEMTRON KPT 28 shale shaker screen replacement.

KEMTRON KPT 28 screen (reverse) KEMTRON KPT 28 shale shaker screen made of 304/316 stainless steel wire mesh cloth.

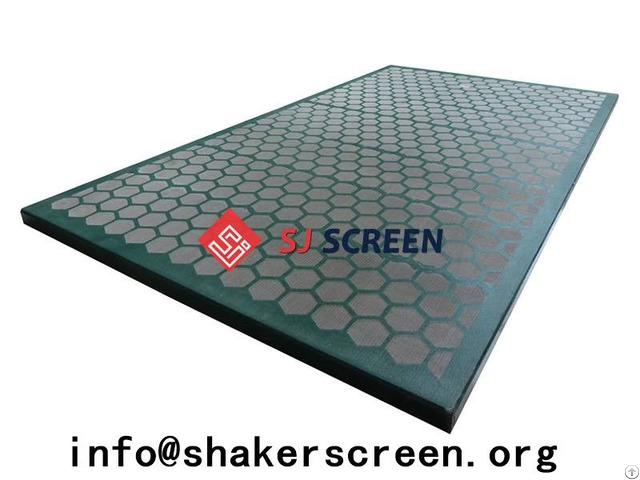

Top-quality 304/316 stainless steel wire cloth KEMTRON KPT 28 shale shaker screen with hexagon shaped backing plate framework.

Hexagon backing plate framework Remarks: KEMTRON, KPT 28 are marks of KEMTRON TECHNOLOGIES, INC.

ShengJia only produces the replacement screens but not original from KEMTRON.
