Pu Dewatering Screen Panel - China

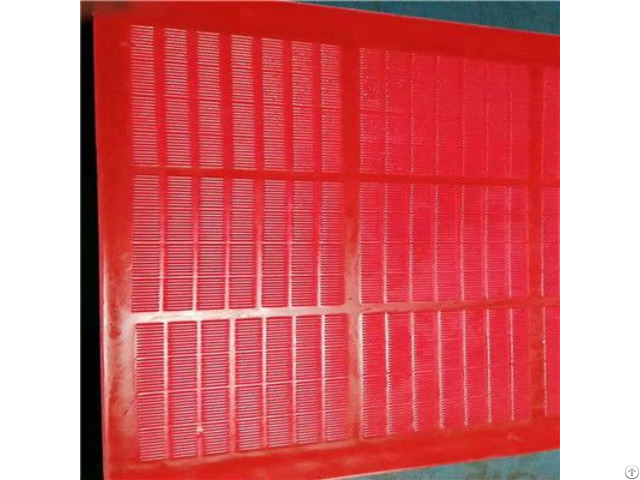

PU Dewatering Screen Panel

PU Dewatering Screen Panel is a type of screens made of steel frame and polyurethane surface.

This structure ensure the high tensile strength and much better wear resistance than the woven vibrating screen mesh and perforated vibrating screen nesh.

PU Dewatering Screen Panel panel is mainly used for dewatering of sand and gravel

PU Dewatering Screen Panel is also called polyurethane slot screen because of the narrow slot openings.

The narrow slot opening is as fine as 0.1mm, which makes the screen have high efficiency and accurate dewatering performance.

The PU Dewatering Screen Panel is widely used to assist in dewatering of materials.

Additional, it can also provide a ramp which helps to maximize screen washing capabilities.

Specifications:

Material: steel frame and polyurethane surface.

Thickness: 30mm, 40mm, 45mm, 50mm.

Opening size: Width: 0.1mm - 2.5mm, Length: 4mm - 16mm.

Screen width: 305mm (12inch) and as your requests

Screen length: 305mm, 610mm, 650mm, 915mm, 1200mm and 1220mm and as your requests.

Features:

Wear and abrasion resistance.

High efficiency.

High tensile strength.

Steel frame added to strengthen the tensile strength.

Lightweight and easy to install.

Various connection types to fit different machines.

Non-blinding.

Low noise.

Long service life.

Application:

Polyurethane dewatering screen panel can provide a ramp which helps to maximize screen washing capabilities and mainly used for dewatering and dehydration for various materials.

Such as below:

Tailing, Coal, Gravel, Sand.
