Pvc Coated Galvanised Gabion Baskets - China

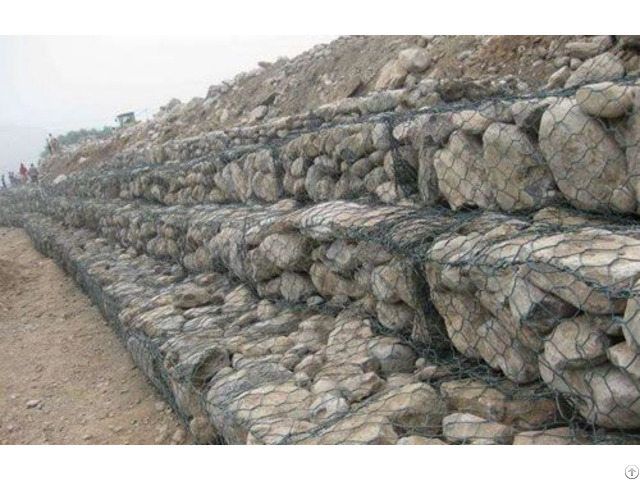

Gabion baskets of twisted galvanized steel wire forming a uniform hexagonal pattern with non-raveling double twists.

Wire shall be a nominal-sized 0.12 inch or greater diameter.

The perimeter edges of the mesh for each panel shall be tied to a 0.15 inch or greater diameter selvedge wire, at least the same length as the body of the mesh, and from the same type of wire as the mesh.

Baskets shall retain rock of a minimum dimension of four (4) inches.

All wire shall conform to ASTM A 641, class 3, and shall have a minimum tensile strength of 60, 000 psi.

Gabion Basket and Filter Fabric to America

Description Gabion Basket, Dimensions: 3ft.

X 3ft.

X 3ft.

- Gabion, Preassembled, 12 Gauge, Galvanized Coating

Gabion Basket, Dimensions: 6ft.

X 3ft.

X 1ft.

- Gabion, Preassembled, 12 Gauge, Galvanized Coating

Filter Fabric, C-46 NW, 12.5 ft.

X 360 ft.

Jamaica Project

Description Galvanized gabion baskets 2mx1mx1m ( double twisted 8x10 wire mesh, fitted with diaphragms, nominal diameter of wire used in the fabrication of the netting 3.01mm)

Coils # 5 (5.59 mm) gauge galvanized wire

Coils # 8 (4.19mm) gauge galvanized wire

Coils #10 (3.4mm) gauge galvanized wire The technical specification as follows:

Variety: Heavily Galvanized Hot Dip Iron Wire

Wire Diameter: 5.59 mm (#5 gauge), 4.19 mm (#8 gauge), 3.4 mm (#10 gauge)

Tensile strength: 55 kg/mm2 (BS 1052)

Elongation: not greater than 12%

Tolerance: Comply to ASTM A-641-98

Zinc coating: Heavily galvanized (BS 443-82)

Packing: 50kg coils

Company Contact:

• Posted By: Teyi Gabion Baskets Factory

• Phone: 0086

• Address: New Industrial Zone, Dezhou, Shandong, China. , dezhou , shandong , China

• Email:

• Website: https://www.gabionbasket.org

• Business Description: Teyi is a gabions products company specializing in gabions of all finishes, gabion wire, hexagonal gabion mesh, geotextiles and machines.

  We are a leading supplier and exporter of the soil erosion resistant wire gabion works in China.

  Our company has been in this industry for more than twenty years and has accumulated rich expereinces in production of gabions and gabions wire mesh.

  Hexagonal woven steel mesh is the chief wire materials for gabion baskets, mattresses and rock-fall mesh netting.

  Our company is a well established leading firm in the field of mesh gabions and related wire products.

  We supply constructive companies / contractors / distributors of many countries for bank building and rock netting project.

  We are iso9001 certified manufacturers.

  And we use raw materials only from certified suppliers.

  We manufacture and supply gabions products of international technical quality.

  Our capabilities:

  Custom and Modular Gabions for Water Soil Conservation Works

  Customized service and special requirements are taken care of

  We can make quick changing of gabions and mattresses specifications acording to project request

  We can make quick supply and starting of work

  Wire materials we use have certification and quality guarantee: we buy only from good quality material factories

  Installation assistance for gabions and machines

  Gabion works design and modification of proposal according to requirements
