Rebar Welded Wire Mesh - China

Wire diameter for welded steel bar panels:

diameter from 5mm to 12mm

Welded bar panels opening:

50mm to 300mm

Panel length:

100cm to 1200cm

Panel width:

100cm to 300cm

Applications:

1 - Concrete footpaths

2 - Precast Panel construction

3 - Construction reinforcement

4 - Residential slabs and footings

5 - Industrial and commercial ground slabs

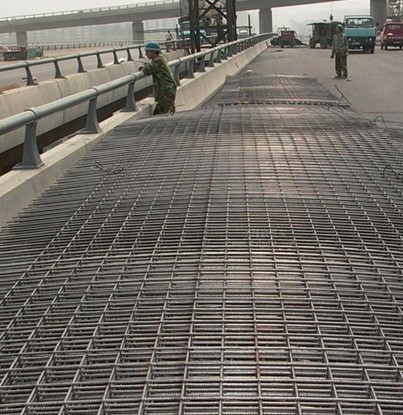

6 - The ground for tunnel, bridge, highway, airport and wharf, also in construction of wall body

Features:

1 - The steel bar has a ribbed profile surface.

This ribbed profile creates improves bonding to concrete, which when compared to smooth wire profiles, minimizes any concrete cracking that may occur as a result of concrete shrinkage.

2 - Compared with common binding wire mesh, wire mesh reinforcement can save labor and time.

And the reinforcing mesh is especially suitable for big area concrete engineering.

AS/NZS 4671: 2001 Australia/New Zealand Standard (SIZE: 6000mmX2400mm)

Ref No.

Std Unit Longitudinal

Wires mm Edge Wires mm Cross Wires mm Mass Kg

SL81 (F81) Sheet 7.6 @ 100 105

SL102 (F102) Sheet 9.5 @ 200 6.75 @ 100 9.50 @ 200 80

SL92 (F92) Sheet 8.6 @ 200 6 @ 100 8.60 @ 200 66

SL82 (F82) Sheet 7.6 @ 200 5.37 @ 100 7.60 @ 200 52

SL72 (F72) Sheet 6.75 @ 200 4.77 @ 100 6.75 @ 200 41

SL62 (F62) Sheet 6 @ 200 4.77 @ 100 6 @ 200 33

SL52 (F52) Sheet 4.77 @ 200 4.77 @ 100 4.77 @ 200 21

BS4483 BRITISH STANDARD

Ref No.

Std Unit Longitudinal

Wires mm Cross Wires mm Pitch of wire No.

of sheet per ton Mass Kg/m2

A393 Sheet 10 10 200 @ 200 15 6.16

A252 Sheet 8 8 200 @ 200 22 3.95

A193 Sheet 7 7 200 @ 200 29 3.02

A142 Sheet 6 6 200 @ 200 40 2.22

A98 Sheet 5 5 200 @ 200 57 1.54
