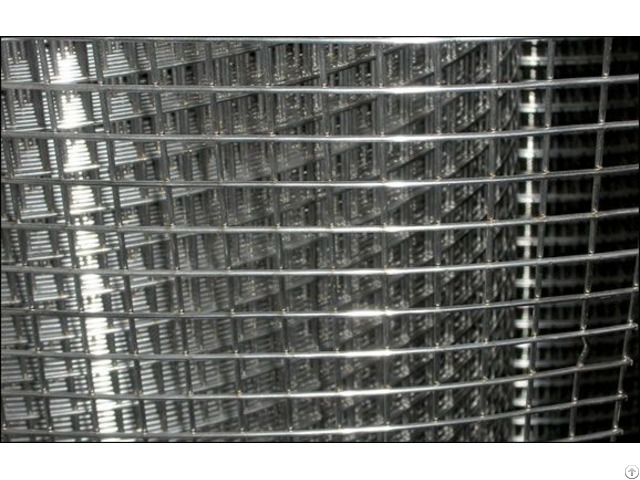

Square Hole Galvanized Welded Wire Mesh Panels - China

Steel wire mesh welded is mainly used in fencing, storage and construction.

For making security fences, mesh cages, rack decking, grids and poultry fences.

Galvanisd welded mesh panel with vinyl coating is popularly used in producing various mesh fence and gridwall panels.

Mostly colors are black, white, etc.

Hot-dipped galvanised wire, welded mesh, quality SAE 1008 according to ASTM a-510, with zinc coating min.

90 gr/m2 according to EN 10244/2, bright finish, with tensile strength min.

540n/mm2.

Opening 50x50mm, framed-panel size 3000x1200mm, Wire diameter 3.60 mm Square Welded Wire Mesh Screen

Common size for Indonesia market

Material : Galvanised or Stainless Steel

Type : Square Welded Wire Mesh

Opening : 2" x 2" ( 50.8 mm x 50.8 mm )

Wire Diameter : BWG 8 ( +- 4mm )

Roll length : 45 m ( 1 - 5 roll )

Width : 1 m ( 1000 mm ) Square Wire Mesh, HDG before Welding

Common size to Hungary market:

HDG BEFORE WELDED WIRE MESH

12, 7X12, 7X1, 4X1000MMX25M 29.5kg

12, 7X25, 4X1, 4X1000MMX25M 11.2kg

16 X 16 X 1, 4 X 1000MMX25M 28.5kg

19 X 19 X 1, 4 X 500MMX25M 10kg

19 X 19 X 1, 4 X1000MMX25M 20kg

25, 4X25, 4X1, 8X1000MMX25M 39.8kg SQUARE WIRE MESH (HDG BEFORE WELDING)

3X3X0, 8X1000MMX15M 50 ROLLS 26kg

4X4X1X1000MMX15M 20 ROLLS 31.5kg

5X5X1X1000MMX15M 50 ROLLS 27kg

6X6X1, 2X1000MMX15M 20 ROLLS 32.4kg

8X8X1, 2X1000MMX15M 30 ROLLS 33.7kg

10X10X1, 6X1000MMX15M 40 ROLLS 38kg

10X10X2X1000MMX15M 30 ROLLS 56kg

12X12X2X1000MMX15M 10 ROLLS 42kg

16X16X2X1000MMX15M 10 ROLLS 40kg

Company Contact:

• Posted By: AnPing Jinghong Wire Mesh Products Co., Ltd

• Phone: 0086-318-789159

• Address: Gulian Street, Anping, China, hengshui , hebei , China

• Email:

• Website: https://www.galvanizedwiremesh.com

• Business Description: Jinghong is a leading factory supplier of galvanized wire mesh and fencing products, established in 1998 - We specialize in manufacturing and exporting high quality wire meshes products galvanized and powder coated.

  Our metal wire products fall into three categories: Galvanized wire mesh, galvanized fencing and wire products.

  Galvanized mesh and cloth

  We supply mainly include Welded wire mesh and woven wire.

  With good corrosion protection of zinc galvanizing, galv.

  steel mesh is suitable for various screening, construction and fencing uses.

  Weld Mesh fences

  We supply include Welded Fence, Chain Link Fence, Knotted Field Fence and Woven Fences.

  Galvanized iron wire

  It is widely used as construction binding wire, baling tie, nail wire, brush wire, spring wire, hanger wire, mask wire, mesh weaving wire, fencing wire, prestressed concrete wires.

  Galvanized wires are supplied in coils, straight cut bundles, spools, and big package.

  We are also in the position to supply annealed iron wire, black wire and coated wires.
