V Mesh Welded Mesh Fencing System

Qijie is ideal for residential areas, commercial properties, schools or car parks.

The V shaped profile reinforcing folds increase the panel's rigidity and strength.

Panels can be stacked above one another to deliver a higher fence.

within commercial, domestic, residential, health, industrial, education.

25 year service life guarantee PANELS

Panels 3000mm wide with 200 x 45mm mesh, 5mm wires with 2 - 4 reinforcing folds according to height, Galfan Zinc alloy treated as standard.

Vertical wires are at 50mm centres, therefore the panel has 61 vertical wires.

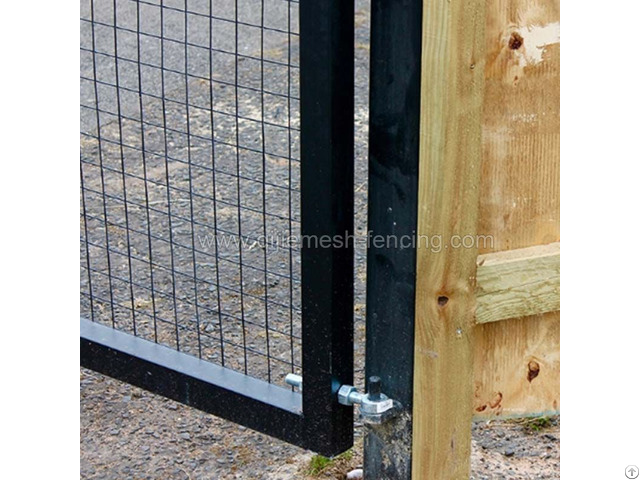

GATES

We manufacture matching single and double leaf gates for this product, with a range of opening actions and manual and automatic operating options.

POST OPTIONS

● Over length set in concrete as standard

● Base plated to bolt down onto concrete

● Cranked to suit wall mounting

STANDARD FINISHES

● Hot dip galvanised to BS EN ISO 1461 as standard

● Hot dip galvanised and powder coated to BS EN 13438

● Marine coat for installations within 500m of salt water or an estuary

STANDARD COLOURS

● Black RAL 9005

● Green RAL 6005

● Other colours are available on request

QIJIE Welded Mesh Panel

QIJIE PANEL SPECIFICATIONS

Height (mm) Post Centres (mm) Post Dimensions (mm) Overall Post Lengths (mm)

1525 3034 60 x 40 2100

1810 3034 60 x 40 2500

2010 3034 60 x 40 2800

2410 3054 80 x 60 3300
