Jis F7334a 5k Marine Brass Hose Globe Valve - China

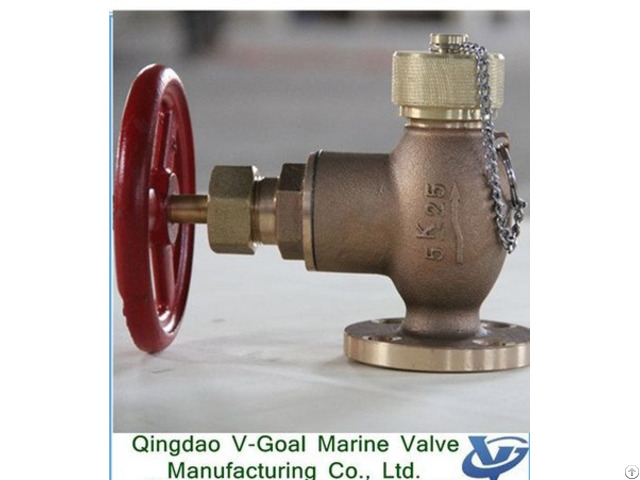

JIS F7334A 5K Marine Brass Hose Globe Valve

Marine Brass F7334A DN40 Hose Vertical Valve

Marine Cast Bronze Straight Hose Valve

Marine Globe Hose Valve 5K, 10k

Marine Brass F7334A DN25 Hose Vertical Valve

JIS F7334A F7334B 5K/10K Hose Globe(Angle) Vlave

JIS F7334A 5K Marine Brass Hose Globe Valve manufacturer china Hose Valve Bronze

PARAMETERS:

Bronze hose valve (fire hydrant) JIS F7334A DN15-40 5K/10K

dn15-40 Standard Materials

body bc6

bonnet bc6

disc bc6

stem c37710bd or be

gasket non-asbestos

SPECIFICATIONS:

DN d L D C NO.

h t H D2 L1 d1

5K15 15 73 80 60 4 12 9 130 80 50 M42×2

10K15 15 73 95 70 4 15 12 130 80 55 M42×2

5K25 25 78 95 75 4 12 10 160 125 60 M42×2

10K25 25 83 125 90 4 19 14 160 125 65 M42×2

5K40 40 129 120 95 4 15 12 190 140 80 M52×2

10K40 40 134 140 105 4 19 16 190 140 90 M52

×2 OVERVIEW

Specifications: Standard or Nonstandard: Standard

Structure: Globe

Pressure: Low Pressure

Power: Manual

Material: Brass/BRONZE

Temperature of Media: Low Temperature

Media: Water

Port Size: DN15-DN65

Place of Origin: Shandong, China (Mainland)

Model Number: JIS F7334A

Brand Name: V-GOAL

Application: General


End Type: Flange

Design Standard: JISF7400

Flange Standard: JISB2220

MOQ: 1 Pieces

Technical servicing: Available Packaging & Delivery:

Packaging Details: plastic bag+ box+ carton+ pallet for JMarine Globe Hose Valve 5K, 10k

Package: plastic wrap+carton+crate

Single valve is packed with foam plastic bag.

Packed in Plywood Case on Pallet and Lined with Single.

We can pack according to specific customer requests.

Delivery Detail:

25-40 DAYS for JIS F7334A10K/5K Marine/shipbuilding Bronze Hose Valve Product Description: Marine Brass F7334A DN32 Hose Vertical Valve JIS F7334A 5K Marine Brass Hose Globe Valve 1 - The flow path is simple, small dead zone and vortex area, scouring action by means of the media itself, which can effectively prevent the media from clogging.

And has good self-cleaning properties.

2 - Small flow resistance, flow coefficient smaller than the single seat valve, equivalent with the flow coefficient of double-seat valve.

It's suitable for the case of high viscosity fluid containing suspended particulate matter, or to request a place at right angles to the pipe.

Its flow is generally bottom into the side.

Actuation ways: Angle valve: Manual, pneumatic, electric etc, it is suitable for cutting or adjust and throttling medium.
