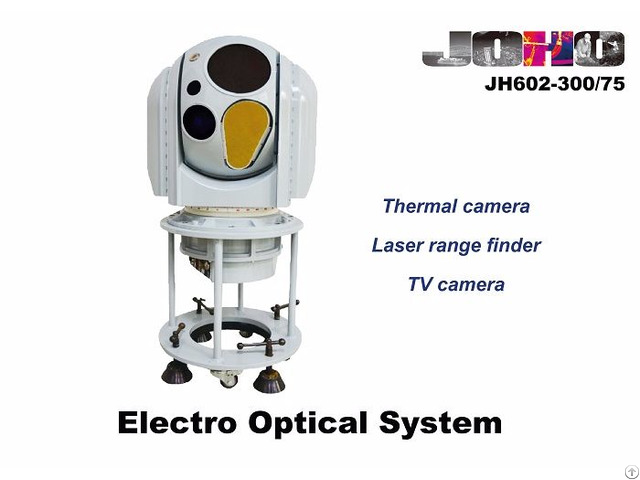

Multi-sensor Electro-optical Infrared (EO/IR) Tracking Turret JH602-300/75

JH602-

300/75 turret is equipped with a high performance MWIR cooled HgCdTe thermal camera (optional 640x512 higher resolution), continuous zoom TV camera and laser range finder, capable of search target at day/night, as well as recognition, tracking, ranging and aiming target, real-time output target angle, angular speed, distance information.

Built in high accuracy stabilized gyro, it keeps the sensors Lines of Sight (LOS) aiming and direction stabilization while the carrier (ship) attitude changing or under vibration condition.

JH602-300/75 turret can work independently for ship auxiliary navigation, additionally able to receive slaving instruction from Radar, as a part of EO defense system.

FEATURES

l Multi-sensor IR +TV + LRF l High accuracy calibration keeps 3 sensors' optical-axis parallel

l Utilizing 2-axis design, high accuracy gyro stabilization ensures stabilized tracking

l Military standard components, capable of working under severe environment for a long time

l Highly-integrated, built-in control circuits, easy for system optimization.

TECHNICAL DATA

THERMAL CAMERA

Detector Cooled HgCdTe FPA Pixel 320×256 (optional 640×512 higher resolution)

Spectral band 3.7μm~4.8μm

FOV WFOV: 7.3°×5.8° NFOV: 1.8°×1.4°

FOV switching time ≤1s

Electronic zoom 2×

DAY LIGHT CAMERA

Detector 752×582, 1/3″ white/black CCD

FOV: 18°×13.5°~1°×0.75° continuous zoom

Luminance range 200lx~105lx

LASER RANGE FINDER

Wavelength 1.06μm

Laser emission collimated angle ≤0.8mrad

Ranging 300m~20km (visibility 23km, 15m×10m target)

Measurement accuracy ≤±5m

Repeat frequency 5Hz

SERVO

Stabilization accuracy ≤0.2mrad (1σ)

Turret direction range Azimuth: ±160°(0° is bow direction); Pitch: -20°~+75°

Turret maximum angle speed Azimuth: >50°/s; Pitch: >50°/s

Turret maximum acceleration >50°/s 2; pitch: >50°/s 2

Video signal format CCIR PAL standard B/W

Communication RS422

POWER

Power Supply DC24V/15A (24V power supply), DC28V/20A (28V power supply)

Power consumption DC24V power dissipation: 96W (Average)/240W (maximum)

DC28V power dissipation: 28W (Average)/70W (maximum)

PHYSICAL

Dimension Turret: ≤Φ400×750mm;

Control box: 500 mm×230 mm×87 mm

Weight Turret: ≤120kg (includes electronic box and mobile base); Control box: ≤ 5kg

Color Gray
