High Density Hot Sell Indoor Full Color Big Led Display P5 - China

Overview

Specifications

Place of Origin:

Shanghai, China (Mainland)

Brand Name:

Leado

Model Number:

project indoor P5

Usage:

Indoor

Tube Chip Color:

Full Color

Display Function:

video, image, text, message and so on

Pixels:

5mm

Screen Dimension:

Customized Size

Name:

indoor full color big led display p5

Other name:

high density indoor full color big led display p5

Brightness:

1500-2000cd/sqm

Certificate:

CE ROHS FCC

Color:

Full-color

Pixel pitch:

5mm

Module size:

160*160

Life span:

100000hours

Application:

Square, Adervertising, Bank, Hall, Rent

Pixel density:

40000dots/sqm

Packaging & Delivery

Packaging Details:

indoor full color big led display p5 Packing: Carton, Wooden box, Flight case

Delivery Detail:

Shipped in 15 days after payment

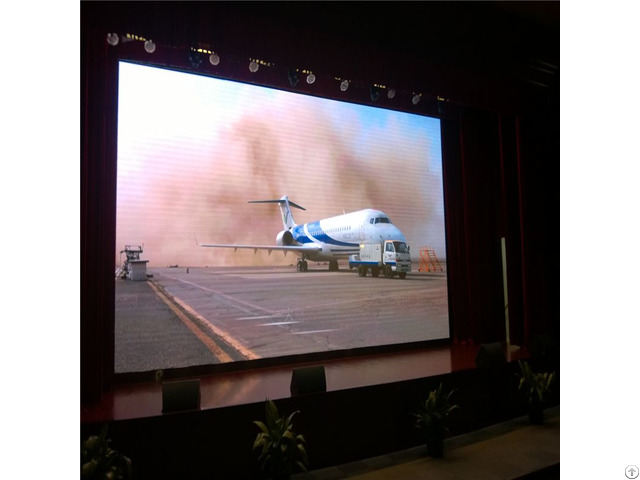

High density hot sell indoor full color big led display p5

Product Description

Specification of indoor full color big led display p5

No.

Specs Indoor full color PH5

1 Pixel structure 1R1G1B 3in1, 3528

2 Pixel pitch 5mm 3 Pixel density 40000dots/Sq.

m.

4 Luminance 1500-2000cd/Sq.

m.

5 Module dimension 160mm(W) * 160mm(H)

6 Module resolution 32 pixel(W) *32pixelmm(H)

7 Module weight 270g

8 Cabinet dimension 800 * 800mm or other

9 Cabinet area 0.64 sq.

meter or other

10 Screen weight 40~60kg/m2

11 Optimal visual distance > 5m

12 Visual angel 140 degree (H/V)

13 Max power consumption 750w /Sq.

m.

14 Average power consumption 375w /Sq.

m.

15 Brightness adjustment Adjust according to the enviroment

brightness software (0%-100%adjustable)

16 Drive mode 1/16 dynamic scan, constant current

17 Input voltage AC 110~240 volts

18 Operation temperature -40° C~ +60° C

19 Operation humidity 10%~90%

20 Input signal DVI, MPG, AVI, WMV, RM etc.

21 Control system DVI card + master control card + receiver card

22 lifetime (50% brightness) >100, 000 hrs

23 Malfunction dot rate 1/10000

24 Cabinet material Epoxy paint coated Cold rolled steel iron/Aluminum 25 Data interconnection UTP Cat 5/Optical Fiber

26 Application: Rental / Permanent installation available
