Tft Lcd Module Screen Display 5 0 Inch - China

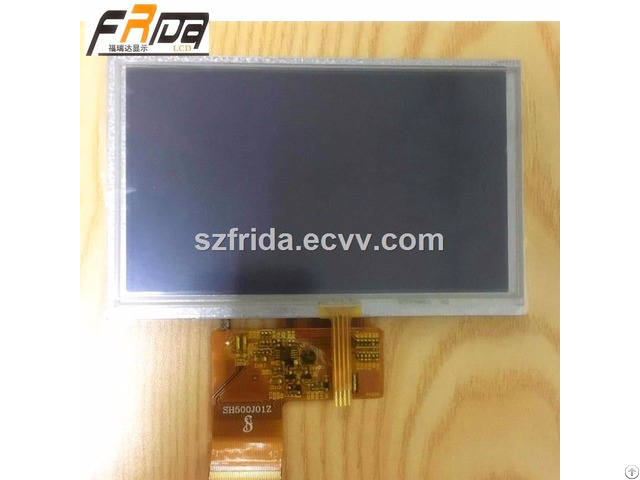

FRD500A24009-B is a transmissive type a-Si TFT-LCD (amorphous silicon thin film transistor liquid crystal display) module, which is composed of a TFT-LCD panel, a driver circuit a backlight unit.

The panel size is 4.99inch and the resolution is 720×1280 - High image quality a-Si TFT LCD module.

Partial-screen display function is available.

Sleep and Stand-by modes are available for power saving.

Product Description:

1 - Display Mode: Normally Black

2 - Screen Size: 5.0inch (diagonal)

3 - Resolution: 480 *854

4 - Color Number: 262K

5 - Color Arrangement: TFT Active Matrix

6 - Driver IC : ILI9806X

7 - Back Light: White LED6*2

8 - Viewing Direction: All direction

9 - Interface: MCU

10 - Surface Treatment: UV Cut

11 - Outline dimensions: 66.15(W)*120.55(H) *1.90(D) (LCM, not include FPC) 12 - Active area: 61.56(W) *109.52(H) 13 - Dot size: 0.12825(H) * 0.12825(V)

14 - Operating temperature: -10 ~60℃

15 - Storage temperature: -20~70℃

16 - Power supply voltage (VCC): -0.3 ~ +4.0 (V)

17 - Power supply voltage (IOVCC): -0.3 ~ +3.6 (V) Other details:

1 - Shipping: By sea / By air

2 - Package: Pearl wool+ paper carton +plywood case / Flight case

3 - Supply Ability: 60, 000 pieces per Month

4 - Payment Terms: L/C, T/T, etc.

5 - Lead time: 15~25 working days Application:

Mobile phone; Portable multimedia device Our advantage:

1 - Competitive price, best service 2 - Quality Assurance: large modern factory building +professional technical team +International Quality Inspection Certificate 0.9" TFT LCD Module Display Screen 1.44"TFT LCD Module Display Screen 1.54"TFT LCD Module Display Screen 1.77"TFT LCD Module Display Screen 2.0" TFT LCD Module Display Screen 2.2" TFT LCD Module Display Screen 2.4" TFT LCD Module Display Screen 2.7" TFT LCD Module Display Screen 2.8" TFT LCD Module Display Screen 3.0" TFT LCD Module Display Screen 3.2" TFT LCD Module Display Screen 3.5" TFT LCD Module Display Screen 4.0" TFT LCD Module Display Screen 4.3" TFT LCD Module Display Screen 5.0" TFT LCD Module Display Screen 7.0" TFT LCD Module Display Screen 8.0" TFT LCD Module Display Screen 10.1"TFT LCD Module Display Screen
