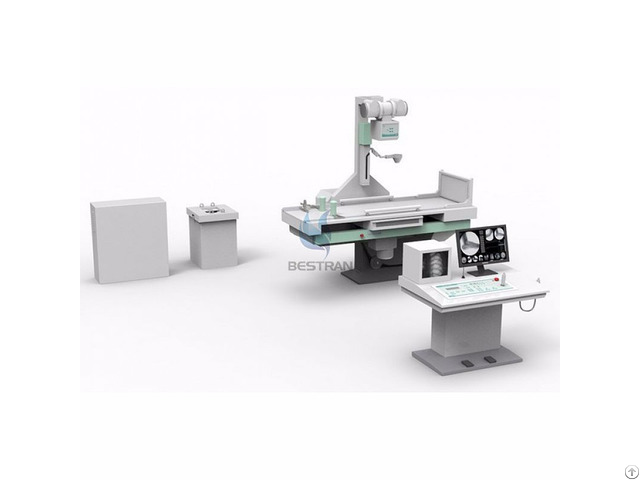

Bt Xf01 Surgical X Ray Machine - China

Specification

Item Contents

Power Supply Voltage: 380V±38V Frequency: 50Hz±1Hz Capacity: ≥40kVA, Internal Resistance: ≤0.17Ω

Photography

Tube Voltage: 44kV~125kV, totally 41 grades

Tube Current: 32mA~500mA adjustable with different grades

Exposure time: 0.02s~4s, totally 21 grades; Control interface: touch-screen Digital X-ray High Voltage System Fluoroscopy

Tube Voltage: 44kV~110kV continuous adjustable with 2kV each grade

Tube Current: 0.5mA~5mA continuous adjustable Digital controlled X-ray tube

Type: XD51-20, 40/125; Power output: 40kW(max) 20kW(min)

Anode thermal capacity: 100kJ; Assembly thermal capacity: 900kJ (1250kHU)

Rotary anode speed: 2700rpm; Tube focus: 2.0 (max) 1.0 (min) Micro-controlled digital upper

tube remote-controlled surgical

bed

Movement range: 90°~0°~25°

Bed transverse movement range distance: ±110mm

Portrait movement of photography frame and track spot film: ≥720mm

Photography dimension of whole film: 8”×10”~14” ×17”

Spot film division: whole film, 2-division film, 3-division film, 4-division film

Method to control bed: remote control, bed-control, Soft boot and stay of frequency conversion

Beam applicator: electrodynamics multi-pin

Bed-applied fixed bucky grid: Grid density: 103L/INCH

Grid ratio: 10: 1, Focus distance: 120cm, 15” ×18” Digital TV system

EGA: 9” Toshiba, High resolution CCD (digital camera); imported low-light 0.47 MEGA PILEXS

Monitor: 14” medical high definition monitor, horizontal central resolution 1000 thread, edge 800

thread, video wideband 12.5mHz, 50bit, 25 pictures per second

Picture-process system: high definition and non-interlaced output, 8-grade noise reduction, 7

pictures in storage, LIH, mirror image rotation in vertical and horizontal, positive-negative

image; OSD (monitor display)
