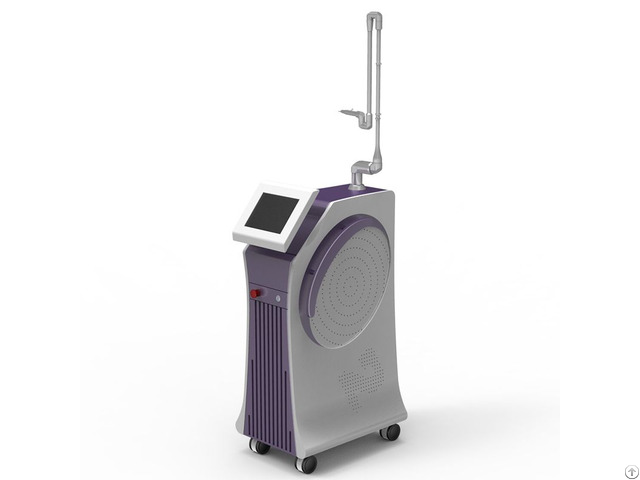

Co2 Fractional Laser Qm Medical - China

Applications:

 Traditional Fractional Model and Surgical Mode:

1) Skin renewing and resurfacing

2) Wrinkle removal, skin tightening

3) Acne and scar removal, melasma removal

4) Smooth scars like burn, surgery, traumatic, and stretch marks, etc

5) Remove intractable chloasmas and pigmentation

6) Sun damage recovery

 Vaginal Mode:

1)Tighten vagina-Fast tightening, lasting constriction, tightness to improve 60%;

2)Clean the vagina - Deep anti-aging, young level to improve 80%;

3)Moist vagina - Improving secretion, moisture level to improve 80%;

4)Pink vagina - Vulva rejuvenation, lighten pigment and pinks labia parts, delicate degree to improve 70%

Features:

1） Adopted RF Metal tube imported CO2 laser generator from Coherent Inc, brings maximum results and minimum downtime, Europe CE and ROHS approved, authority of security

2） Fractional + Ultra Pulse + Vaginal 3 in 1 system

3） 7 patterns sizes adjustable suitable for different treatment area

4） Korean imported Laser Arm, output energy is more stable, smallest energy reduction

5） Aiming Beam adjustable, insure precise treatment

6） Mini spot size 0.1mm for fast skin recovery

7） Only 1-3 times Fast and effective solve scar and vaginal problem

8） 360 degree scanning ability of fractional handle

Technical Specifications:

Laser type RF Tube (USA Coherent)

Output power 40W

Wavelength 10.6μm, far-infrared laser

Display 10.4 inch color touch LCD screen

System & Probes 3 systems, 5 probes

Pulsed Radio Frequency 0.530W

Scan Graphics (7 graphics) Square, rectangle, round, triangle, oval, 6-diamond shape, line

Scan Graphic Size 0.1x0.1mm ~ 20x20mm

Scan mode (3 modes) Random, Sequence, the Maximum Distance A&B, Equidistance, Fast Shot

Working State Hyper-pulsed mode

Pulse Duration 0.1-10 ms

Pulse energy 10mj to 130mj is optional for each dot

Spot Distance 0.1-2.6 mm

Interval 0-6s

Repeat 1-5000 ms

Overlap 1-20 times

Condenser Focus F=50mm

Beam divergence angle 0.3mrad

Spot Size 0.01mm at the focus

Aiming Beam Less than 2Mw, 635nm red semiconductor laser

Beam Transport Device 7-joint articulated optical arm

Laser Apparatus Sealed off laser unit stimulated by direct current

Cooling System Air

Power Supply 220V/110V

Dimension of machine 55x45x108cm

Package Standard 2 cases standard:

Case 1: 68x56x125cm;Case 2: 80x40x30cm

Net Weight 46kgs

Gross Weight 72kgs
