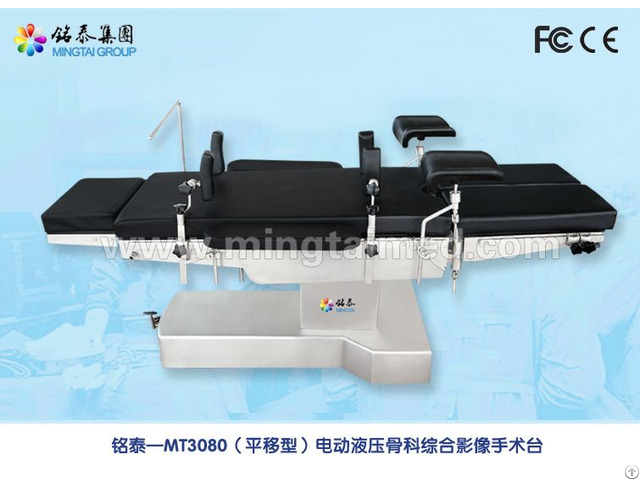

Mingtai Mt3080 Longidutinal Model Electric Operating Table - China

Technical parameters Length 2100mm±50mm Width 520mm Lowest and highest table height (680-1030) ± 50mm Forward/Backward tilt ≥32° Longitudinal motion 350±50mm Left/right tilt ≥25° Head board up/down ≥90° Waist board lifting ≥100mm Leg board down ≥90° Leg board evagination ≥90° Leg board up ≥15° Back board up ≥82°, down: ≥42° FLEX/CHAIR 240°/120° Power AC 220V 50Hz Input power 500VA Unique advantages 1 - Imported Germany Hoerbiger electric hydraulic system and Denmark Linak motors, 4 times safety factor 2 - Imported high precising Hiwin straight slideway from Taiwan, 4 times safety factor 3 - Imported SUS304# stainless steel from Korea 4 - Mechanical braking, 30s auto locking function 5 - Double control system 6 - Optional head board and feet board changing function Main feature 1, The streamlined, C - shaped arm of the carbon bed can be shot from the initial position of the X - arm to the rear of the leg plate, which can increase the shooting range of the C arm.

2 - The design of the auxiliary controller of the table, which provides a double insurance for the operation bed.

3 - German brands of hydraulic system with low noise, strong power, providing a superior positioning accuracy, control flexibility and running smooth.

4 - Easily slider universal casters, provides flexible mobility.

5 - Memory foam mattress does not contain latex components and make the patients more comfortable, safety, greatly to prevent postoperative bedsore occurred, ultrasonic seamless welding technology makes the mattress air permeability, waterproof, anti-static, easy to clean 6 - Open communication interface design, rich software extension resources, can achieve efficient docking with the digital operation room.

7 - It provides overload protection to motor, battery, battery valve, avoid dangerous hidden trouble.

The protector will automatically pop up when overload, this time the machine stops running and solves the security problems, the bed body can work when you re- press into the protector.

8 - Patented lifting column technology, patented head plate holding hoop structure design, patented brake design and many other advanced technology application, guarantee the product's stability.

The base of operating table has a fixed or mobile function, mobile flexible, fixed reliable.

Machine design in line with national medical electrical safety standards, with a variety of functions of 304 stainless steel manufacturing accessories, in order to suit the needs of different surgery.

9 - The table can be upgraded and equipped with the same brand hanging orthopedics traction
