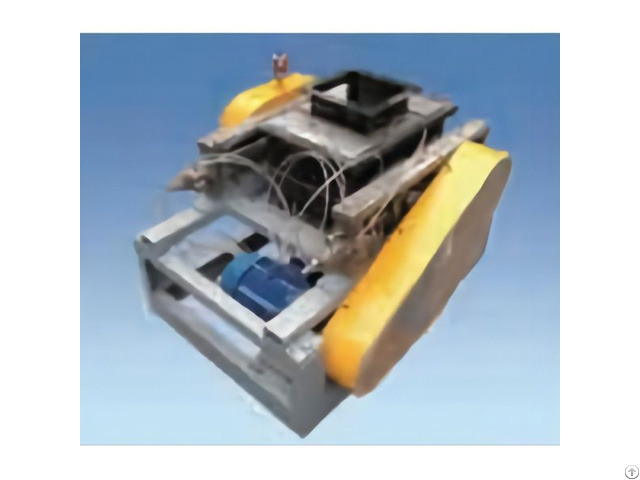

Ryfsj B Roller Crusher - China

·Working principle

This machine is to further crush the It is made up of two rollers with a certain clearance running through each other, so that the debris thrown into the rollers force produced by the two rollers biting each other.

· Machine features

·Unique tectonic mode One of the two rollers is fixed on the bearing seat and the other adopts a sliding structure.

This structure can adjust the clearance between the rollers.

The sliding side produces a certain pressure through the extrusion of the spring to crush the material.

But when mixed with foreign subjects or overload, the pressure will disappear.

But in order to prevent the two rollers from collide with each other, buffer blocks are added between the rollers to ensure that the two rollers do not collide with each other.

The minimum clearance between the submits is greater than 0 - 5 mm.

·Special Ceramic Roller

Ceramic rollers are welded on steel hubs with special adhesives and fixed on transmission shafts with parallel pins.

The compressive strength is very good.

·Flexible automatic gap adjustment

The twin-roll crusher belongs to the intermediate crusher, which can adjust the gap between the two rolls according to the size of crushing raw materials and the required product size.

·Driving mode

The reducer leads the driving roller to rotate through belt rotation, and the driving roller leads the driven roll to rotate in the opposite direction through gear transmission, thus realizing the equal speed reverse operation of the two rolls.

· Application scope This machine is suitable for further crushing of raw materials sintered in electronic industry after first crushing.
