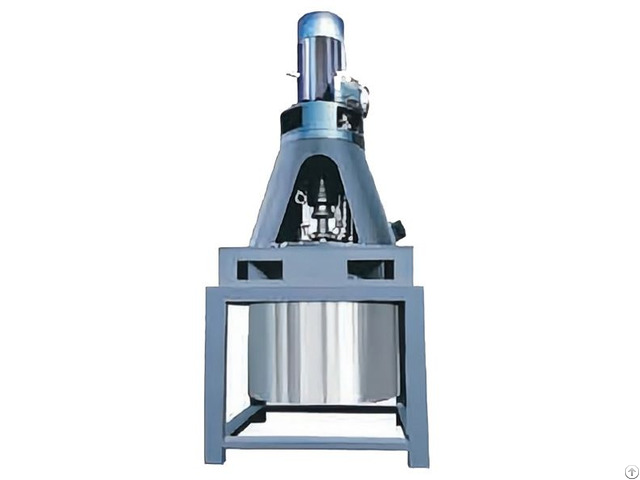

Ryxjz Ryxz Top Suspended Motor Centrifuge - China

●Working Principle The top-suspended Motor Centrifuge is composed of drum.

driving system, bearing seat, upper housing, out housing, lower shaft, scraper group and etc .

Its structure adopts top located transmission system, vertical motor provide the driving of drum through the coupling directly and the drum is fixed on the lower end of the shaft .

The working principle of the top suspended motor centrifuge: The motor drives drum to turn .

When drum reaches feeding speed, the suspension products to be separated will enter into the drum on a high speed from the feeding pipe .

Feeding will stop when the preset volume is reached .

Then the speed of the drum will be raised for separating .

Under the centrifugal force, the products will be filtered by filter cloth(filter screen) .

The liquid phase will be thrown through the rotary drum hole to the empty chamber and discharged through the liquid discharging pipe .

The solid phase will be retained on the drum and form cylindrical filter cakes which can be washed .

After the requirements for separating is met, the speed will be lowered for discharging Housing of the drum moves downwards along the scraper device acts to scrape the filter cakes off the internal wall of the drum and discharge them from the discharging port on the bottom of the centrifuge.
