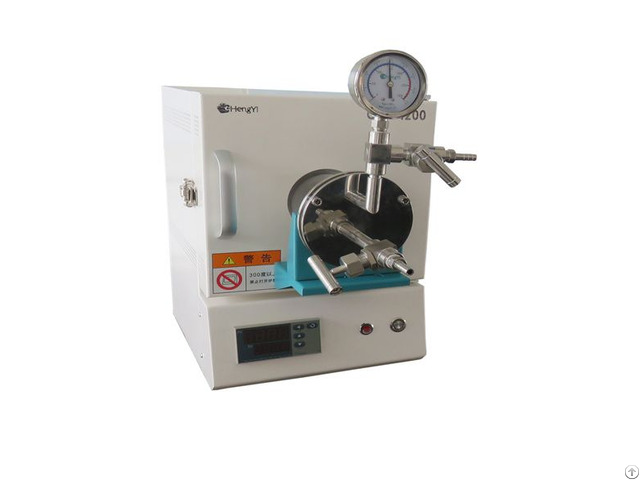

Chy H1210 Compact 1200 Degree Muffle Tube Furnace For Multi Using - China

CHY-H1210 Compact 1200 degree Muffle Tube Furnace for multi using laboratory Muffle Furnace muffle furnace manufacturer 1.100*100*100mm chamber dimension

2 - high quality ceramic fiber chamber

3 - PID Programmable controller

4 - Muffle Furnace/Tube Furnace multi-function using

5 - Made by Henan Chengyi Muffle Furnace APPLICATION

1 - laboratory heat thermal processing cement, building materials industry etc

2 - Pharmaceutical medicines inspection, preteatment of medical sample

3 - Analytical Chemistry Industry: water analysis and environmental analysis

4 - Analysis of coal quality, determine moisture, ash, volatile matter, ash melting point analysis, gray component analysis, and elemental analysis PRODUCT PARAMETERS

Product Name 1200 Degree Muffle Tube Furnace

Model H1210

Furnace Door side open type

Display Model Highlight LED display

Maximum Temperature 1150℃

Working Temperature ≤1100℃

Heating rate ≤20℃/min Suggest: 10℃/min

Heating zones Single heating zone

Hearth dimensions 100mm×100mm×100mm

Hearth volume 1L

Tube Size O.

D60*270mm

Sealing method Vacuum sealing flange

Vacuum degree 10-3Pa with Turbo pump system

Control mode Intelligent PID auto control

Temperature Accuracy ±1℃

Temperature curve 30 segments programmable

Over heat alarm Have

Overcurrent protection Have

Thermocouple Failure Protection Have

Temperature measure element K-type thermocouple

Heating Element Fe-Cr-Al Alloy doped by Mo

Hearth Material high purity alumina fiber

After-sales service 12 month warranty, durable maintaince and repair support

Power Supply 220V 50HZ

Rated power 0.75kw

Overall dimensions 400×400×450 (mm )

Packing 3-ply wooden case

Accessories plate, protective glove, crucible hook, crucible tongs, quartz tube, vacuum flange, user manual.

Our compact 1200c muffle furnace is electrically heated with coil heating elements supported on ceramic tubes generally provided on both side wall and back wall.
