Chy T12100a 3z4c 1200 Degree Cvd System For Garaphene Film Preparation - China

price: contact company for price

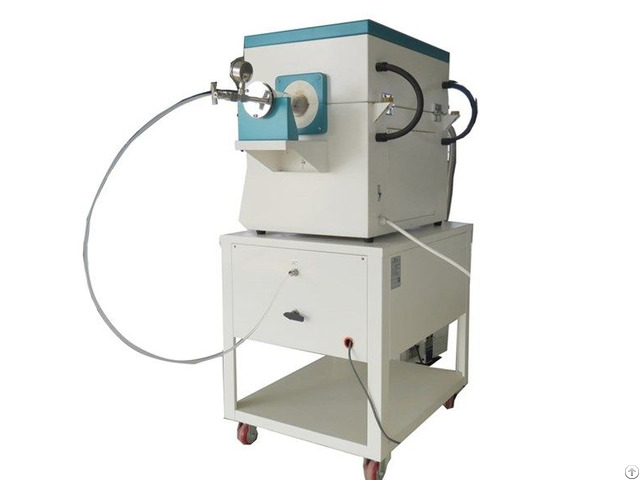

Chy T12100a 3z4c 1200 Degree Cvd System For Garaphene Film Preparation

Products Photos Catalog Chy T12100a 3z4c 1200 Photos Catalog

CHY-T12100A-3Z4C 1200 degree CVD system for Garaphene Film Preparation CHENGYI CVD System CVD machine price 1 - O.

D100*1000mm high purity quartz tube

2 - High quality ceramic fiber chamber

3 - PID Programmable controller

4 - Three gas way mass flow controller with precision gas flow controller

5 - Two stage Vacuum Pump

5 - Made by Henan Chengyi CHENGYI Laboratory CVD Tube Furnace APPLICATION

1 - Laboratory heat thermal processing

2 - High Vacuum Sintering Heating Annealing Brazing

3 - Laboratory Thin Film Preparation, Nano tube growthing

4 - Laboratory CVD system, graphene growthing, preparation.

1200 degree CVD system PARAMETERS

Product Name 1200 degree CVD Furnace

Modle No.

CHY-T12100A-3Z4C

Heating zones Single heating zone

Heating zone length 400mm

Constant temperature zone length 200mm

Tube Material high purity quartz tube

Tube diameter O.

D100*I.

D94*1000mm Quartz Tube

Tube Length 1000mm, 750mm, 1000mm, 1200mm as enquiry

Thermcouple K type

Maximum heating temper 1150 dgree

Heating rate 20c/min, adjustable suggestion 10 degree/min

Heating element Fe-Co-Al by Mo alloy

Sealing Method stainless steel vacuum flange

Vacuum Air-tightness 9.8×10-4Pa

Temperature Accuracy ±1℃

Control Mode Intelligent PID programmable Control, 30 steps sintering curve restore

Mass Flow Controller 3 gas way mass flow controller

Flowmeter Core 304 stainless steel

Measure Accuracy +/- 1.0% F.

S

Pressure Range -0.1~0.15MPa

A way gas range 0~100SCCM

B way gas range 0~200SCCM

C way gas range 0~500SCCM, or as customized

Vacuum Pump 4C

Power Supply AC220V 50Hz Our CVD machine has three gas way mass flow controller with precision gas flow controller.

Our products are very popular, please contact us as soon as possible! Founded in 2013, CHENGYI is a manufacturer of lab equipment.

We not only can supply standard lab equipment, but also we do customized as request.

We sincerely welcome worldwide friend come to visit us! For more laboratory equipment, please visit our website to visit our website.

If you have any question on CVD machine.

We will give the professional answers to your short questions.


Company Contact:


  • Phone: 860371-55027790

  • Address: 136 yard, 10th Avenue,jingkai Area, zhengzhou city, Henan , China

  • Email: Email


Published date: June 2, 2020

  • Business Description: Henan Chengyi Equipment Science and Technology Co.,Ltd was founded in 2013 - Our company is a manufacturer and supplier of lab equipment.

    Our Equipment range include: Tube Furnace, Muffle Furnace, CVD System,PECVD equipment,Plasma Cleaner,Hydraulic press,Lab grinding polishing equipment, lab ball mill etc.

    Our product are widely sold to America, UAE, European, South Africa etc.

    With Own R&D team and factory,we not only can supply standard lab equipment, also,we can do customized as request.

    We sincerely welcome worldwide friend come to visit us.
