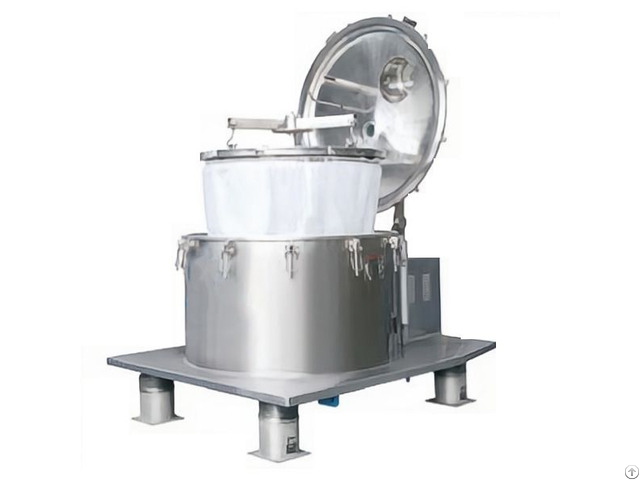

Hanging Bag Up Discharging Centrifuge - China

configuration choice

1 - t1 nitrogen protection system

2 - liquid-seal device at liquid outlet

3 - plc program control and material layer detection

4 - inclined plate asynchronous distributor, on-line cleaning device

5 - equipped with frequency conversion control and feedback braking system

6 - mobile installation, equip with shock absorber, etc

7 - other configuration requirements ● main characteristics

the quick-loading lifting bag discharging method is adopted, which is easy to operate, fast and labor-saving.

2 - fully hermetical structure design is adopted, avoiding cross-contamination of separation materials and in accordance with gmp specifications.

the nitrogen protection in the inner chamber of the centrifuge fully meets the requirements of hermetical explosion protection.

3 - it is easy to discharge with large machine cover.

4 - cover opening is equipped with mechanical balancer.

5 - equipped with frequency conversion program control system, smooth and steady starting-

6 - the inner and outer surfaces are polished, without dead angle, all smooth transition, with on-line cleaning (material cleaning, machine cleaning), in order to achieve the best washing effect.

7 - it has strong applicabity, wide application range and crystal particles are not easy to be destroyed.

standard structure form

platform structure, shell and plate welding as a whole, shell cover and shell body with flange quick opening structure, shell cover opening using balanced cylinder assist ( spring ), shell cover with feeding pipe, cleaning pipe, sight glass, observation lamp, ventilation port, etc., external connection pipe nozzles using standard flange
