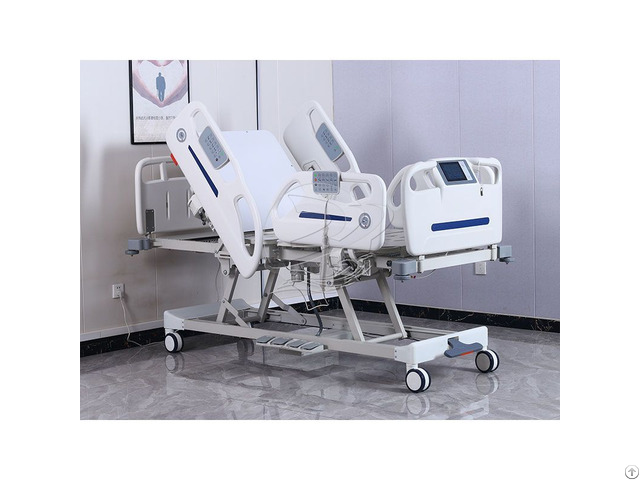

HR-D21 Five Function ICU Electric Hospital Bed With Weight Scale

ICU Bed Electric 5 Function With Weighing Scale – Specifications

This ICU bed electric 5 function with weighing scale is designed for intensive care environments, providing advanced patient positioning, intelligent weighing management, ergonomic operation, and superior durability.

The system integrates electric adjustments, nurse station control, emergency backup power, and premium-grade materials to ensure safety, comfort, and clinical efficiency.

1 - Product Dimensions & Functions

Length: 2150mm

Width: 1020mm

Height: 430-680mm

This ICU bed electric 5 function with weighing scale allows for easy adjustment of the bed's height, backrest, and footboard angles.

The backrest and footrest height can be adjusted smoothly via a hand controller, and the bed can be raised and lowered horizontally.

Backrest Tilt0-75°

Leg Tilt0-45°

Height Adjustment430-680mm

Trendelenburg Tilt0-12°

The bed features a central controller at the nurse's station with a 7-inch LCD touchscreen display.

The display includes functions such as historical weight data storage, angle display, patient information input, and an alarm for patients leaving the bed.

All bed functions are operable.

✔ One-button cardiac chair positioning function

✔ One-button linkage function between backrest and legrests

✔ One-button forward/backward tilt function

✔ One-button reset function

✔ One-button locking function

✔ One-button CPR function

✔ Manual CPR function

Each side of the bed is equipped with a foot pedal controller to control the overall height adjustment and forward/backward tilting of the bed.

ICU bed electric 5 function with weighing scale is equipped with a rechargeable battery to ensure normal use of the bed in emergency situations.

2 - Product Materials

The bed frame is made of high-quality cold-rolled carbon steel pipe with a thickness of 1.5mm.

Some load-bearing materials are made of 3mm one-piece stamped parts.

The bed panel is made of high-quality cold-rolled carbon steel plate with a thickness of 1.2mm, stamped in one piece.

The bed panel has high strength, balanced stress, strong pressure resistance, and features ventilation holes and anti-slip function; the bottom is reinforced with welded steel pipes for sturdiness and durability.
