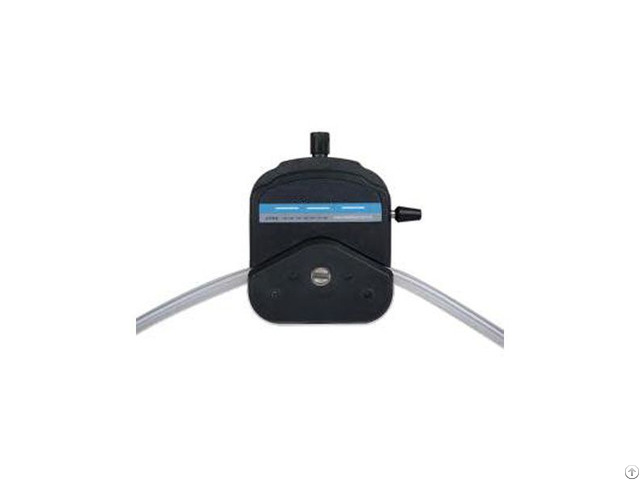

Ry Easy Load Adjustable Pump Head - China

Introduction 1 - RYYT15 pump head flow range is 0.006~2300ml/min, suitable for tube size of 13#, 14#, 19#, 16#, 25#, 17#, 18#, wide flow range.

2 - RY YT25 pump head flow range is 0.17~2900ml/min, suitable for tube size of 15#, 24#, 35#, 36#.

It is an ideal choice for conveying more viscous liquids and meeting the requirements of larger suction range, head and outlet pressure.

3 - With self-adapting clamping device, it is easy to clamp tubes of different thicknesses without manual adjustment.

4 - Classic pump tube locking mechanism, replacing tube only takes several seconds, easy to deal with frequent tube change conditions.

5 - Special pressure tube structure, reduce wear and tear of pump tube and accidental rupture caused by mis operation.

6 - The pressure tube clearance can be fine-tuned manually, when reducing tube clearance it can convey the larger pressure, and increasing tube clearance it can prolong the life of pump tube.

At the same time, it can adapt to the deviation caused by different processing accuracy of pump tube.

8 - PPS special functional plastic shell and 4 SS rollers ensure that the pump head, can meet the high-strength use requirements such as high speed, long time, etc., simultaneously reduce transmission pulsation.

9 - Multiple pump heads can be superposition, maximum expansion to 4 channels.

10 - When two pump heads are series connection, the rollers are staggered at 45 degrees, which can obviously reduce the fluid pulsation and increase the transmission speed.

11 - RYYT15, RYYT25 pump head can match motor such as stepper motor, servo motor, AC motor, DC motor and other types of motor.
