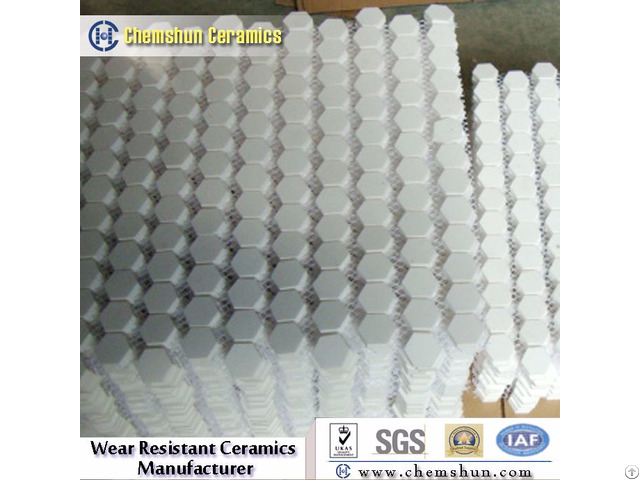

Alumina Ceramic Hexagonal Mosaic Tile Stick On The Net - China

Alumina ceramic hexagonal mosaic tile stick on the net Wear resistant alumina mosaic plate also named ceramic lining pieces mats consist of small plate glued on acetate silk or other special medium.

Alumina mosaic plate offer long wear life in .

applications with sliding wear .

the thickness and the low weight make these products ideal in applications where weight and space are limiting factors.

Chemshun high alumina ceramic mosaics in a variety of sizes and shapes including square and hexagonal shapes .

Dimensions range from 500*500mm, 300*300 mm, various plant components can be lined quickly and easily with these mosaic plate .

Alumina ceramic mosaic tile liner advantages :

High hardness with Moh's hardness 9 grade High abrasion and chemical resistance Easy installation by epoxy resin glue water Easy mending if someone hex tile drop off

Various of alumina ceramic hex sheet size available chumshun hexagonal tile and sheet size Ceramic hexagonal tile size Ceramic hexagonal mat (stick on silk /nylon net/paper) size

S12xT3mm 300*300 mm 150x150mm

S12xT6mm 300*300

S12*T13 mm 300*300

S12*T20 mm 300*300

S12*T24 mm 300*300

S12*T11 mm 300*300

Note: more customized size available

Application industry mining industry Cement industry Coal handling industry Steel industry Port industry Power plant

Technical data 1) : Chemical Composition:

Al2O3 SiO2 CaO MgO Na2O

92~93% 3~6% 1~1.6% 0.2~0.8% 0.1%

Physical properties:

Specific gravity (g/cc) >3.60

Apparent porosity (%) 0

Flexural Strength (20ºC, Mpa) 280

Compressive strength (20ºC, Mpa) 850

Rockwell hardness (HRA) 80

Vickers hardness (hv) 1050

Moh's hardness (scale) ≥9

Thermal Expansion (20-800ºC, x10-6/ºC) 8

Crystal Size (μm) 1.3~3.0
