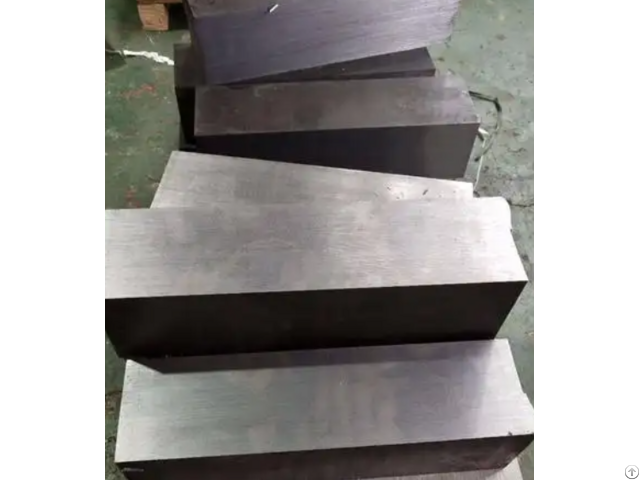

W6mo5cr4v2 Quenching Process Control For M2 High Speed Steel Tools - China

W6Mo5Cr4V2 quenching is the most critical step in heat treating M2 high speed steel, because it fixes the as-quenched structure that tempering will transform.

Correct quenching practice gives HRC 63-66 before tempering with a fine grain; poor control leads to cracking, coarse grain or soft spots that no later tempering can repair.

Recommended Quenching Sequence:

1 - Preheating

- First stage 550-600C for equalization of the whole cross section

- Second stage 850C held just below the transformation point

- Purpose: prevent thermal shock and cracking of large or complex tools 2 - Austenitizing

- Salt bath or vacuum furnace with controlled carbon potential

- Small precision tools: 1180-1200C

- Larger sections and tougher tools: 1200-1230C

- Soak time: about 1-2 minutes per mm of section, do not over-soak 3 - Quenching Media Options

- Salt bath at 500-550C (martempering): best for complex shapes, minimal distortion

- Oil quench: acceptable for simple shapes below 50mm, fast and economical

- Pressurized gas in vacuum furnace: clean parts, medium cooling rate, low distortion

- Air quench: only very small sections, risk of carbide precipitation if too slow 4 - Post-Quench Handling

- Move directly to tempering while parts are still around 100C

- Never leave as-quenched tools overnight: risk of cracking and retained austenite stabilization Common Quenching Defects and Causes:

- Quench cracks: too fast cooling in the martensite range, sharp corners, insufficient preheat

- Soft spots: decarburized surface, uneven bath temperature, vapor blanket in oil

- Coarse grain: overheating above 1240C or excessive soak time

- Carbide network at grain boundaries: quench too slow through 900-750C range Quality Checkpoints After Quenching:

1 - As-quenched hardness HRC 63-66 confirms proper austenitizing.

2 - Grain size check on a broken sample or metallographic section.

3 - Dimensional survey before tempering to catch distortion early.
