High Abrasion Resistant Chute Wear Lining With Excellent Performance - China

Rubber wear liner size

500*500*28mm

Ceramic mesterial

92% alumina With or without bolts

Without

Ceramic size

Cylinder φ20*20mm

Rubber thickness

8mm

Steel plate thickness

0mm

Seam tolerance

3±1mm

Rubber wear liner size weight

19.0kg/piece

Sample time

1-5 days Product description:

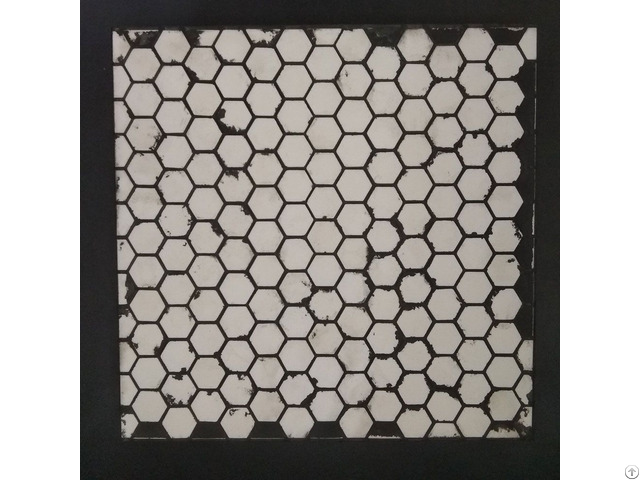

Also named wear cermaic parts, wear rubber ceramic plate, wear resistant ceramic pads.

Ceramic rubber composite pads&plate is use of rubber vulcanization process, to embed the wear-resistant ceramic vulcanized into rubber, stick it on the inner all of equipment with the adhesice paste.

As customers' requirment, it also can be vulcanized together with steel plate, with bolts or not.

Features:

It combines wear-resistance of ceramic of ceramic and impact-resistance of rubber, apply to conveying systems equipment work under normal temperture, and can bear some impact.

Applications:

Raw material feeding system: belt head hopper, belt head hopper, trolley tee bucket, and feed hopper.

Batching system: mixing silo, primary mixing cylinder, secondary mixing cylinder, mixing disc, pelletizing disc.

Sintering material conveying system: beneficiation hopper under the vibrating screen, long-distance beneficiation hopper, silo.

Dust removal and ash discharge system: dust removal pipe, elbow, tee, dust falling pipe, and tail dust removal pipe.

Coking system: coke hopper.

Iron-spraying coal injection system, medium speed mill: cone bucket, separation baffle, outlet pipe, pulverized coal pipe, and burner cone.

Steel ball mill: outlet pipe, coarse powder separator, fine powder separator, coal powder pipe, elbow, inner shell of powder discharge machine.

Steel rolling workshop: slag flushing pipeline.

Impact-resistant and wear-resistant ceramic rubber composite lining board (three-in-one lining board) is mainly used in the thermal power industry (falling coal pipe lining board), the steel industry (blast furnace hopper, cylindrical mixer), the cement building materials industry (clinker clinker) Chute), smelting industry (hopper), machinery industry (hopper), coal industry (transportation station chute), mining industry (initial break, medium and fine breakage, transfer chute hopper), chemical industry (chute), organic silicon industry (level two) Heavy-duty cyclone dust collector), coal chemical industry (falling coal pipe), port terminal (ship unloader hopper), commercial industry (mixer liner), automobile manufacturing and other heavy-wearing industries.

If you want to get a quick quote, please send us these details: 1 - Sample quantity, bulk order quantity

2 - Application industry

3 - Target price

4 - Sample shipping address

5 - If you need customization, please send us the specific composition, size and drawing
