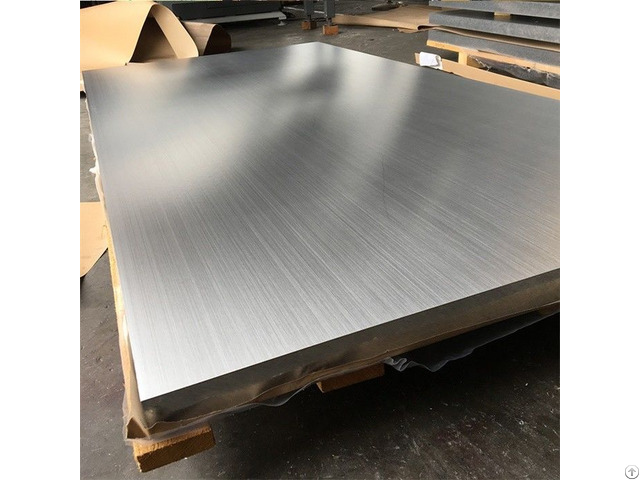

Aluminium Sheet 3003 - China

3003 series aluminum sheet is a common product of the aluminum-manganese alloy series.

Due to the manganese alloy element, this product has excellent anti-rust properties, also known as anti-rust aluminum sheets.

The strength is about 10% higher than that of the 1100 series, and the formability, weldability, and corrosion resistance are all good.

It is used for processing parts and components that require good formability, high corrosion resistance, and good weldability, or work that requires both these properties and higher strength than 1XXX series alloys, such as kitchenware, food, and chemical products handling, and Storage devices and tanks for transporting liquid products, various pressure vessels and pipes processed with thin plates, general utensils, heat sinks, cosmetic plates, photocopier rollers, and ship materials.

Characteristics of Aluminium Sheet 3003

3003 is an AL-Mn alloy, which is the most widely used anti-rust aluminum.

The strength of this alloy is not high (slightly higher than that of industrial pure aluminum) and cannot be strengthened by heat treatment.

Therefore, cold working methods are used to improve its mechanical properties: It has high plasticity in the annealed state, good plasticity in semi-cold work hardening, low plasticity in cold work hardening, good corrosion resistance, good weldability, and poor machinability.

Mainly used for low-load parts that require high plasticity and good weldability, working in liquid or gas medium, such as fuel tanks, gasoline or lubricating oil conduits, various liquid containers, and other small-load parts made by deep-drawing; the wire is used to make rivets.

Scope of application

This product is often used in humid environments such as outer packaging, mechanical parts, refrigerators, air-conditioning ventilation ducts, etc.

The product has good rust resistance.

3003 aluminum plate is often used in ships, navy ships, vehicle materials, automobile and aircraft plate welding parts, pressure vessels requiring strict fire protection, refrigeration equipment, TV towers, drilling equipment, transportation equipment, missile components, armor, etc.

Density formula of Aluminium Sheet 3003

Length (mm)*Width (mm)*Height (mm)*0.00000272 Size of Aluminium Sheet 3003:

- Thickness: 0.2-150mm

- Width: 400-1900mm

- Length: 500-6000mm
