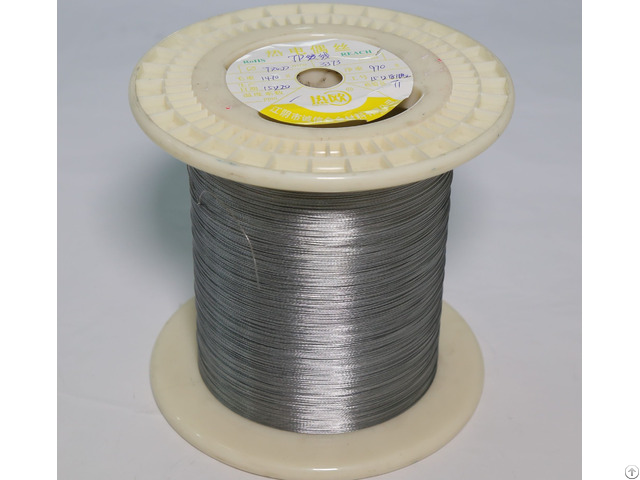

Alloy Material E Type Thermocouple Resistance Wire - China
price: 20.00 Dollar US$
NiCr- CuNi thermocouple (type E) is also named NiCr- Constantan thermocouple.
The main chemical composition of positive leg NiCr (EP) is Ni: Cr~90: 10, negative leg Constantan (EN) is Cu: Ni~55%, 45%.
Although EN, TN, JN are all called Constantan, EN and TN don not give the same EMF output curve as JN.
EN and TN are able to interchange but they are not interchangeable with JN.
The operating temperature range of type E thermocouple is -200~900℃。
Type E thermocouple has the largest EMF output and highest sensitivity, so it is ideal for measuring small temperature change.
It also has good stability in the low temperature range up to 300℃, and good property of anti-corrosion in humidity atmosphere.
It is recommended for oxidizing or inert atmospheres, but cannot be used directly in reducing atmosphere and atmosphere with sulphur gases.
Company Contact:
- Posted By: Jiangyin Chengxin Alloy Material Co.,Ltd
- Phone: +86-13218781558
- Address: No.7 Nanqiu Road, Jiangyin , Jiangsu , China
- Email:
- Website: http://www.jscxhj.com/
Published date: December 26, 2019
- Business Description: Jiangyin Chengxin Alloy Material Co.,Ltd produces hundreds of types products with the "REOU” brand, comprising over a thousand specifications under seven main categories.
Copper-based low resistance heating alloys (CuNi1-CuNi44); precision resistance alloys(Karma.
manganin and constantan); high resistance heating alloys (nickel-chromium alloy wire); thermocouple alloys (K,N, E, T, J type); thermocouple extension wire alloys; PTC thermistor resistance alloy and specialty wire (pure nickel wire and corrosion-resistant with wire, strip, ribbon, bar, foil, sheet, stranded.
