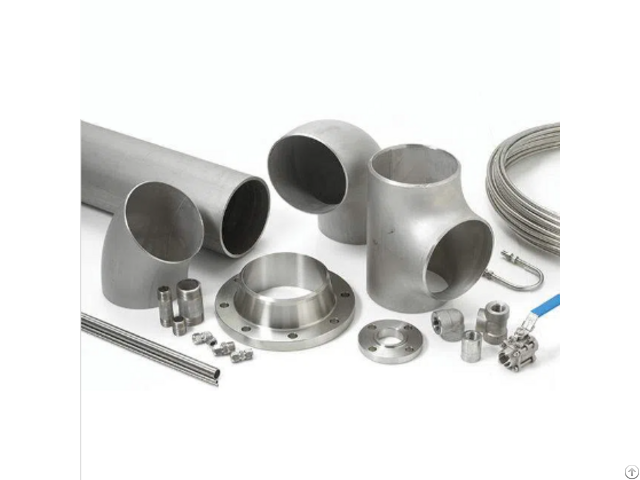

Stainless Steel Butt Weld Fitting - China

Specification:

- Name: Stainless Steel Fittings

- Type: seamless, welded

- Shape: elbow, tee, reducers, union, etc.

- Grade available: 304, 304L, 304H, 316/316L, 316Ti, 317, 317L, 321, 321H, 309S, 310, 310S, 347, 347H, 904L, Duplex Steel S31803 (2205), S32750 (2507), Inconel 600, 625, Incoloy 800/800H, 825, etc.

- Size Available: seamless DN15-DN600 (1/2 "-22"), 1/2" to 20" SCH 10/40/80/160

- Size Available: diameter from 20mm to 600mm, thickness from 1mm to 35 mm

- Specification: GB/T12459, GB/T13401, SH3409, HG/T21635, HG/T21631, ASME B16.9, MSS SP-43, DIN260 - Name: Stainless Steel Flange

- Type: plate-type flat welding flange (PL), slip-on necking flange (SO), welding neck flange (WN), socket welding flange (SW), etc.

- Grade Available: 304, 304L, 304H, 316/316L, 316Ti, 317, 317L, 321, 321H, 309S, 310, 310S, 347, 347H, 904L, Duplex Steel S31803 (2205), S32750 (2507), Inconel 600, 625, Incoloy 800/800H, 825, etc.

- Size Available: DN10-DN1000

- Specification: GB9112-9131, SH3406, ANSI B16.5, DIN2576, 27, 66, DIN2632-2638 etc5, JISB2313 Stainless Steel BSP Fittings

TS offers a comprehensive range of Stainless Steel 150 LBS Rated BSP Threaded Investment Cast Fittings.

The most commonly requested BSP fittings are from 1/8inch-4inch.

Dimensions are in accordance with the American standard ASME B16.3 - 1-Piece Ball Valve, Reducing Bore, 1000 WOG and 3-Piece Ball Valve, Full Bore, 1000 WOG, BSP threaded are also stocked in grade 316 stainless to complement our BSP 150LB fittings.

These are stocked from 1/2"-2".

BSP stands for British Standards Pipe (thread).

WOG stands for WATER, OIL, and GAS.

In addition to our stock of BSP fittings is a complete range of Forged High-Pressure fittings 3000 LBS fittings in socket weld and NPT threaded from ½"-2".

These fittings are manufactured according to ASME/ASTM SA/A182 with dimensions to ASME B16-11 - The stock of unions, caps, plugs, tees, reducing tees, 90º & 45º Elbows, full couplings, half coupling, reducing couplings, concentric and eccentric swage nipples.

Stainless Steel Buttweld Fittings

TS offers a range of Stainless Steel Buttweld fittings in 90º and 45º Elbows, Concentric and Eccentric Reducers, End caps, Stainless Steel Equal and Reducing Tees, Stub Ends, and Weld On Collars.

TS carries the full range of Buttweld fittings in grades 304L and 316L schedule 10s, the 40s, and 80s.

Buttweld fittings are stocked in accordance with ASTM/ASME SA/A 403 WP –W (Welded), WP–S (Seamless), and WP- WX (Welded with X-ray).

All material is marked in accordance with the applicable standards and fully traceable to EN 10204 3.1 material certificates.

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required.

Weld Fittings are offered in nominal tube sizes 1/2" through 12" in T304 and T316L materials.

Uniform wall thickness for 1/2" through 3" sizes measures .

065 (16 ga).

In 4" size, wall thickness measures .

083 (14 ga), 6" and 8" .

109 (12 ga).

VNE offers Polished ID and OD Fittings for immediate shipment.

Other polished combinations may be ordered.

Company Contact:

• Posted By: Shanghai T.S. Industrial Co.,Ltd

• Phone: 8615607960723

• Address: No.2, Lane 1588 Youyi Road, Shanghai , China

• Email:

• Website: https://www.lordfintube.com

• Business Description: Shanghai T.S. Industrial Co., Ltd focuses on Finned Tubes, Fin Tube, and Finned Pipe used in Heat Exchangers, Boiler Economizers, Coolers, and Heaters.

  We supply custom fin tubes and finned pipes in various material configurations that will increase the heat exchangers' heat transfer rate and reduce operating costs.

  With an advanced high-frequency resistance welding finned tube production line, an annual production capacity of up to 4000 tons, the specifications of phi 22-273mm finned tube, according to national standards or customer requirements standard production.

  The company produces finned tubes (square fin tube, circular finned tube, spiral fin tube, H type finned tube, longitudinal fin tube, corrugated fin tube, spiral serrated fin tube, needle-shaped fin tube, plate-shaped fin tube, inner fin tube) that can be applied to the boiler, air preheater, etc.

  Fin tubes or called finned tubes are a major component for various heat recovery systems.

  The close connection between the Finning operation and the manufacturing plant allows significant savings in packaging and freight as well as working capital reduction as a result of a “just-in-time” supply chain.

  T.S. Industrial Supply and produce to custom requirement finned tubes.

  For high-frequency resistance welding finned tube.

  The fin, either solid or serrated, in carbon, alloy, or stainless steel is helically wound around the tube and resistance welded.

  For Extruded Finned Tube, the Base tube can be carbon steel, alloy Tube, and stainless steel, while the fin can be aluminum and copper alloy.

  Typical product, we also produce extruded serrated finned tubes.

  For Bending, We can be on the bare tube and also can be over the fin, is performed on-site with custom-designed duplex benders.

  In our typical finned tube supply range, we supply both extruded fin tubes and helical welded finned tubes, which are mainly used for the heat transfer industry.

  Specific types such as Embedded Fin Tube also called G Type Fin Tube, L Fin Tube, LL Finned Tube, KL Finned Type also call knurled Finned Tube, Extruded Fin Tubes, Extruded Serrated Fin Tube, Square Fin Pipe also call H Fin Tube, Rectangular Fin Pipes also called Double H Fin Tube, Longitudinal Finned Tubes, Studded Tube and Nailhead Pipe, High-Frequency Welded Serrated Fin Tube, High-Frequency Welded Solid Fin Tube.

  T.S. Industrial privately owned company and finned tube manufacturer.

  We are not owned by, nor do we own, any steel producers.

  Our independence from steel producers ensures that we are objective in matching exact customer needs in terms of quality, specifications, and delivery.

  T.

  S Industrial provides finned pipes products and services to the power plants, petrochemical industries, boiler & heat exchangers, nuclear stations, paper, shipbuilding sectors as well as refrigerating industries.

  Incorporated with manufacturers and fabricators in China, we can supply in accordance with most international standards with high-qualified and cost-effective products.

  Our main strength lies in the heat exchanger tubular, especially finned tubes, which can be long up to twenty meters, and usually delivered in U-bent form.

  We are confident that our expertise in this field will bring you high-value-added products & services, and we are ready anytime to team up with your finned tube solutions.
