Stainless Steel Capillary Tube - China

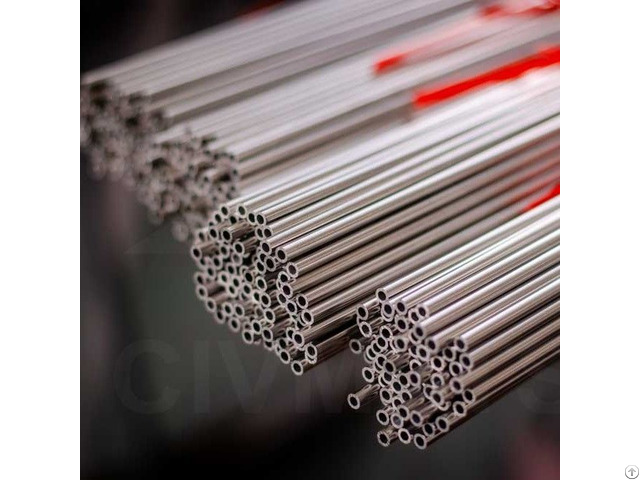

As a leading Chinese stainless steel pipe & tube supplier, CIVMATS produce high precision stainless steel capillary tubes with a tight tolerance of ±0.02mm under ISO 9001: 2015 - Our SS capillary tubes can be classified into four categories, AP tube, MP tube, BA tube and (Cleanroom) EP tube, among which BA tube and EP tube are the most popular and gain high recognition from different industrial applications, both home and abroad, due to high precision and greater corrosion resistance.

For your reference, we can manufacture SUS 316L capillary tube containing 12 Nickel with enhanced corrosion resistance, particularly suitable for special applications such as high toxic gas.

In most cases, TP 316L containing 10 Nickel will be sufficient for general corrosive services.

The main ASTM standards we produce are ASTM A269, A270, A312, A554 and A249 for your divergent demands.

At CIVMATS, the supply of our stainless steel capillary tubes comes in multiple dimensions and various grades.

The main grades are 316(L), 304(L), 321(H), 309S and 310S.

If you want non-standard size or grades not listed in our datasheet, we can customize for you upon our confirmation.

For standard size of common grades, we have ex-stock for fast delivery.

We can also provide small pieces of free samples upon your request for you to check quality.

If you are interested in our stainless steel capillary tube, just call us or drop us an email, our sales will come to you shortly.

Specifications:

• Outer Diameter: Φ0.4-Φ16.0mm (Minimum - Maximum)

• Wall Thickness: 0.1-2.0mm (Minimum – Maximum)

• Length: 18000mm (Maximum)

• *Customized size needs to be confirmed with us

Standards:

• American Standard: ASTM A312, ASTM A358, ASTM A249, ASTM A269, ASTM A554, ASTM A790

• European Standard: DIN 17457

• Japanese Standard: JIS G3459

• GB Standard: GB/T12770-2002, GB/T12771-2008

Features:

Fine softness, anti-corrosion, heat resistance, durability, good tensile properties, waterproofing, and good electromagnetic shielding properties.

Applications:

Automation instrument line, wire protection tube, inner support of high voltage cable, chemical, petroleum, medical equipment, decoration, kitchen ware, food machinery, pens, clock, fishing rod, etc.
