High toughness H13 1.2344 SKD61 Hot Work Tool Steel

Product Details

Chemical Composition (%)

Standard Steel Grade C Si Mn P S Cr Mo V W

DIN 1.2344 0.37-0.42 0.90-1.20 0.30-0.50 0.030 0.030 4.80-5.50 1.20-1.50 0.90-1.00 -　

ASTM H13 0.32-0.45 0.80-1.20 0.20-0.50 0.030 0.030 4.75-5.50 1.10-1.75 0.80-1.20 -　

GB 4Cr5MoSiV1 0.32-0.42 0.80-1.20 0.20-0.50 0.030 0.030 4.75-5.50 1.10-1.75 0.80-1.20 -　

Specification 1.2344 Tool Steel

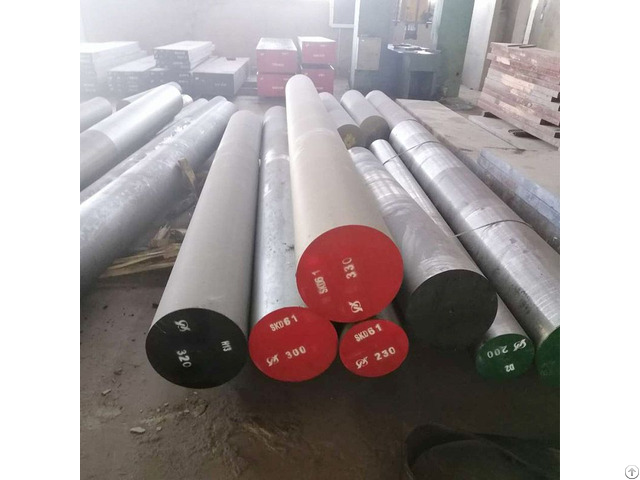

Round bar Diameter Length - Forged round bar：φ50~450 2000~6000 - Rolled round bar：φ10~80 2000~6000 -

Flat bar Thickness(mm) Width(mm) Length(mm) Forged plate：20~300 50~710 2000~6000 Rolled plate：10~65 155~610 2000~6000

Heat Treatment

Soft Annealing(℃) Cooling Hardness(HB) Hardening(℃) In Hardness(HRC)

860-890 Furnace Max.

229 1020-1060 In air, oil, thermal

bath 450-550℃ 52-56 HRC Tempering(℃) 100 200 300 400 450 500 550 600 650 700

HRC 53 52 51 52 53 54 53 50 43 31

N/mm2 1845 1790 1730 1790 1845 1910 1845 1680 1360 995

Quenching technique

Quenching temperature Cooling Hardness HRC Medium Temperature Continuation 1020-1050 Oil or air 20-60 Room temperature 56-58

Forging technique

Heat temperature Start Forging temperature Finish Forging temperature Cooling

1120-1150 1050-1100 900-850 Burial pit or sand cooling

Tempering Technique

Purpose Heating Temperature Heat treatment equipment Cooling Hardness HRC

Eliminate stress, stabilize structures 560-580 Gas furnace or Electric furnace Air 47-49

More information visit our website.

Characteristics

1 - Air cooling hardened hot work tool steel, most widely used hot work tool steel.

2 - High toughness and cold and heat-fatigue resistance.

3 - Excellent toughness hot fatigue resistance and certain abrasion resistance at medium temperature.

4 - During air cooling, deformation and oxide skin tendency is small.

Good resistance from the undermining of fusing aluminum.

Delivery condition

Annealing, hardness is below 235HB

Surface: black, machined, painted and other customized.
