Tcp Ip Rs232 485 Face Recognition With Two Usb Host Ko Face702 - China

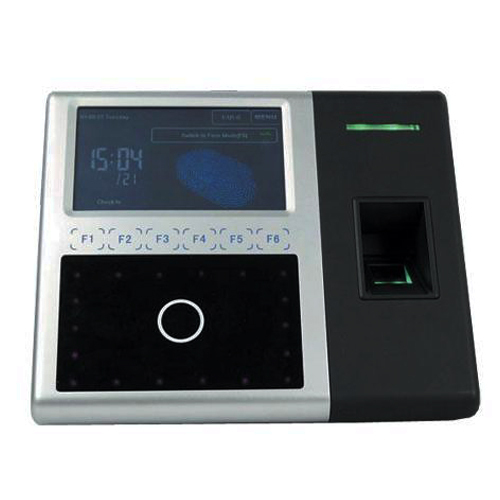

TCP/IP RS232/485 Face Recognition with Two USB-Host KO-FACE702

Multi-Bio 600 Facial Recognition Time Attenddance and Access Control KO-FACE702 System Specification:

1 - Integration of Fingerprint, Facial, RFID, and Password identification methods.

2 - Elegant design according to the view of human engineering

3 - 4.3 inch TFT touch screen, easy operation, fashionable and simple interface.

4 - 6 user-defined function keys

5 - Simple access control function reduces extra door control equipments cost for users.

6 - Webserver management software via IE browser.

7 - Extendable scheduled-bell.

8 - Infrared optical system enables user identification in dark environment.

9 - Optional built-in backup battery support extra 4 hours continuous operation if power cut.

10 - Optional built-in wireless WiFi or GPRS communication makes easier device installation without wiring.

Multi-Bio 600 Facial Recognition Time Attenddance and Access Control KO-FACE702

Processor

Multi-Bio 600

Memory

256M Flash, 64M SDRAM

Hardware Platform

ZEM800 Multi-Medium Development Platform

Fingerprint Sensor

Optical Fingerprint Sensor without film

Camera

High Resolution Infrared Camera

Display

4.3 inch TFT touch screen

Face capacity

700 (1: N)

Fingerprint capacity

5000

ID Card capacity

10, 000

Logs capacity

100, 000

2000mAh backup battery

Optional

Communication

TCP/IP, RS232/485

USB-HOST

Two USB-Host

Wireless Wi-Fi

Time attendance Standard functions

Extendable Scheduled-bell, DLST, Self-Inquiry, Work Code, Short Massage, T9 input Webserver

Simple A&C function

electric lock, door sensor, exit button, Wiegand output

Optional functions

WIFI, GPRS, serial printer, Mifare/HID/iClass, backup battery

Power supply

12V3A

Verification Speed

≤2 sec

Operating temp

0c- 45c

Operating Humidity

20%-80%

Dimension

193.6*165.2*86mm (Length*Width*Thickness)

Gross Weight

1.9 kg
