Type C Fibc Conductive Bag - China

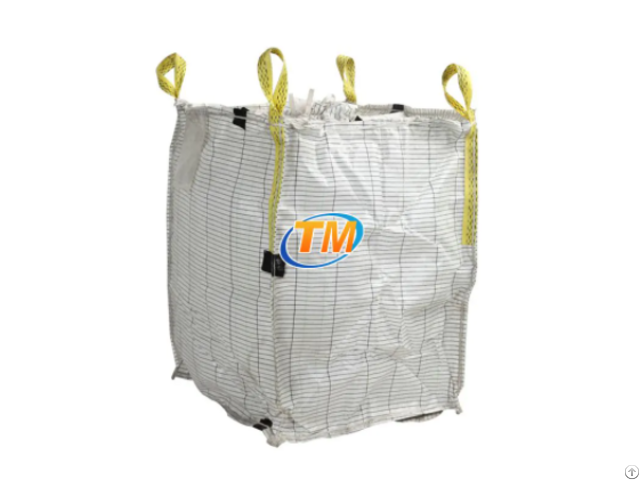

Type C FIBC Conductive Bag

PRODUCT DESCRIPTION

Type C FIBC, also known as conductive FIBC or ground-able FIBC, are made from non-conductive polypropylene fabrics interwoven with conducting threads traditionally sewn in a grid pattern.

These conducting threads must be electrically interconnected as well as connected to a designated ground/earth during filling and discharging.

This connection to the ground/earth during filling and discharging is imperative to the safe use of Type C bags.

Type C bulk bags are completely customizable.

Please contact us to find a unique solution for you, or to request pricing.

Type C FIBC Benefits:

Dissipates Static Electricity

Prevents Brush Discharges when grounded

Prevents Sparks when grounded

Prevents propagating Brush Discharges

Safe for use in the presence of solvents, flammable powders, and combustible materials when grounded.

Less expensive than a Type D FIBC

Features of Type C Bags:

Type C FIBC – which are also known as ground-able FIBC or conductive FIBC – were originally made from entirely conductive materials.

Now, however, they use a conductive surface or network to conduct any growing static charge and move it from the bag to the ground.

These bags have several important characteristics, including:

1 - Made of a non-conductive polypropylene fabric

2 - Conductive threads are usually sewn in a grid pattern throughout the fabric

3 - Conductive threads connect the bag to the ground through a grounding point

4 - Threads are interconnected throughout the bulk bag by sewing several panels of fabric together.

Get a qoute.

Specifications:

Material: groundable polypropylene fabric

Construction: U-Panel, 4 Panels, Circular(Tubular) or baffle

Safety factor: 5: 1 or 6: 1

Safe working load: up to 2000kgs

Liner: with or without

Top: spout, open or skirt

Bottom: close, spout or skirt
