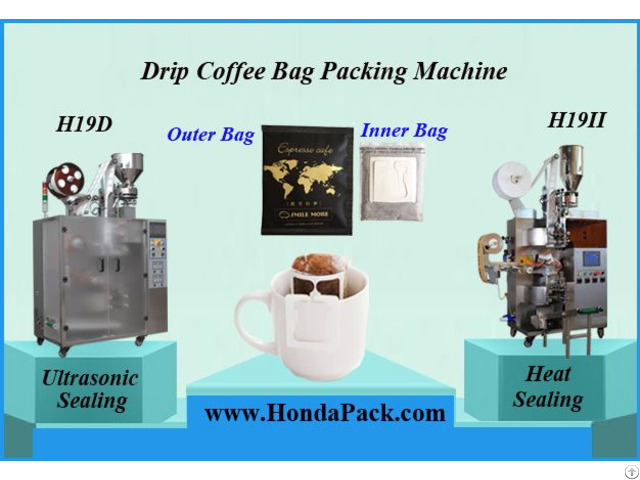

Instant Coffee Bag Packing Machine - China

Instant coffee bag packing machine is suitable for ground coffee, available with coffee or other tea power, etc.

Feature:

1 Outer bag sealing is controlled by the stepper motor, ensuring accurate and stable bag length positioning.

2 Adopts PID temperature controller for more accurate temperature adjustment.

3 Adopts PLC control system, touch screen color monitor device, machine is very easy to operate.

4 It can make inner and outer bag in same time automatically, which would highly improve the working efficiency.

5 The process of bag making measuring, filling, sealing, cutting, logo positioning, counting can be finished automatically.

6 All parts in direct contact with products are made of SUS304 stainless steel, ensuring reliable products output conforming to GMP standard.

7 Some parts of the cylinder are imported, ensuring the accuracy and stability of performance.

8 Adopts automatic conveyor system.

9 Machine reserved a connector to link with Nitrogen gas generator so that it can flush the nitrogen into bag to extend product shelf life.

10 Optional devices: Date code printer, nitrogen gas generator, etc.

Standard Technical Data:

Type: Drip Coffee Packing Machine Series

Product name: Instant coffee bag packing machine Bag type: 3 side sealing or Back Sealing

Outer Bag size: L: 85~120mm, W: 75~100mm (Film width 200mm, Bag size: 120*100mm)

Inner Bag size: L: 50~75mm, W: 50~90mm (Filter paper width 180mm, Bag size: 90*75mm)

Packing speed: 40~70 bags/min Filling range: 5~15g; accuracy: ≦±0.1g/bag


Measuring: Volumetric cup

Inner Packing material Filter paper; Nylon filter mesh

Outer packing material Kraft paper/aluminum coating; PE/aluminum coating; PE film

Ultrasonic device: 2 Sets

Sealing method: Ultrasonic sealing and cutting for inner bag; Outer Bag by heat Sealing.

Power: Single phase, 220V, 50HZ, 1.5KW

Air supply: ≧0.6Mpa (Can be equipped with Air Compressor)

Weight: 600KG

Dimension (L*W*H): 1200*900*1900mm
