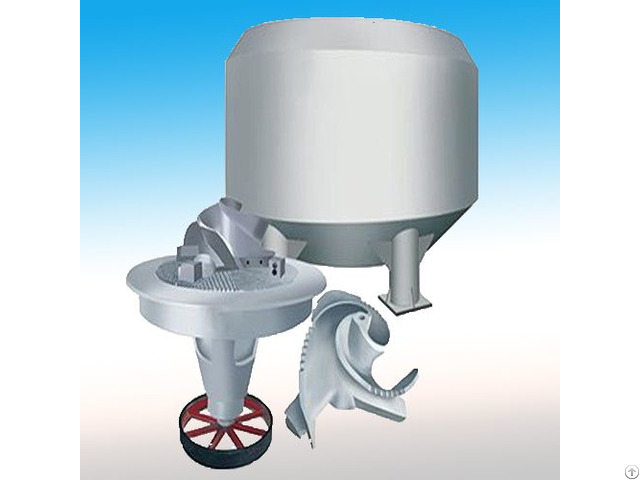

Paper Pulp Hydrapulper - China

Application:

Used in paper industry for breaking pulp sheet, broke and waste paper.

Features:

This equipment is fitted with P.S. vokes rotor, which can strengthen hydraulic cycle and fiber defiberizing and also perform continuous breaking with lower energy consumption.

Type HT-23 HT-24 HT-25 HT-26 HT-27 HT-28 HT-29 HT-30 HT-31 HT-32

Nominal volume: m3 5 10 15 20 25 30 35 40 45 50

Capacity of product : t/d ONP & LOCC Φ6 - Φ10 25-35 45-60 65-80 85-100 110-130 130-150 150-170 170-190 190-220 220-250 Φ10 - Φ16 35-50 60-80 80-100 100-130 130-150 150-170 170-190 190-210 220-250 250-280 AOCC Φ6 - Φ10 15-25 30-40 45-60 60-75 80-95 95-110 110-125 125-140 140-160 160-190 Φ10 - Φ16 25-35 40-50 60-75 75-90 95-110 110-130 125-150 140-160 160-180 190-220 Chemical wood pulp Intermittent type 13-18 25-30 40-50 50-60 65-85 80-100 95-120 110-135 125-150 140-170

Power of motor: kw 55 110 160 185 220 250 280 315 355 4000
