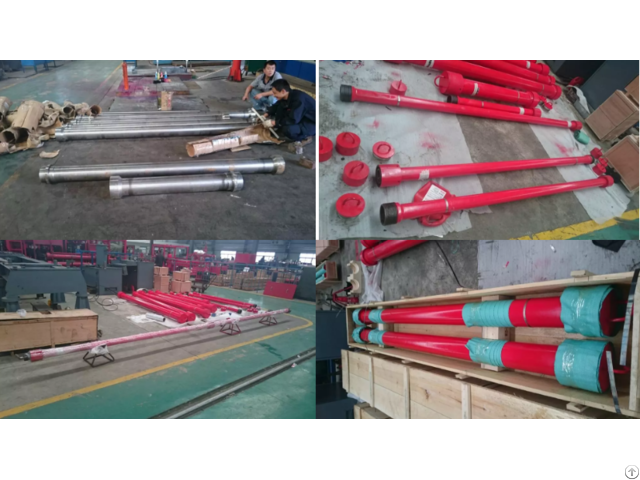

High Quality Logging Lightweight Wpce Lubricator - China
price: 300.00 Dollar US$
Lubricator & riser sections are pressure retaining cylinders used during well intervention operations, for tool deployment.
Sections can be made-up together with an appropriate sealing device, to form an effectual operating height to retain the tool string complete with sub-surface deployment tool(s) being run or Retrieved from the well.
options: The TIS lubricator and riser section range is available with the following options : 3.00”ID to 9.00” ID through bores
3ft to 20ft length options
5, 000 Psi, 10, 000 Psi and 15, 000 Psi working pressures
Standard or sour service
Service temperature range of -29 to +121 °C
Choice of quick union or API flanged connections
Choice of bleed port connections
Technical Features
On conventional lubricators, the component parts are screwed together by means of a special TIS acme connection, which has a primary o-ring seal and secondary metal to metal seal
On integral type lubricators, the quick union collars can be very quickly and easily removed for cleaning, inspection, etc
Integral lubricator sections can also be provided with an optional full re-cut facility on quick union connections
Company Contact:
- Posted By: Dongying Lake Petroleum Technology Co., Ltd
- Phone: +865467080021
- Address: Huanghe Road, Dongying , Shandong , China
- Email:
- Website: https://www.lakepetro.com
Published date: October 12, 2019
- Business Description: We are a supplier from China for Oilfield equipment and tools: BOP, Mud pump, Valves, pipes, Handling tools, Downhole tools, Solid control, Wellhead control, flanges, fittings and spare parts.
