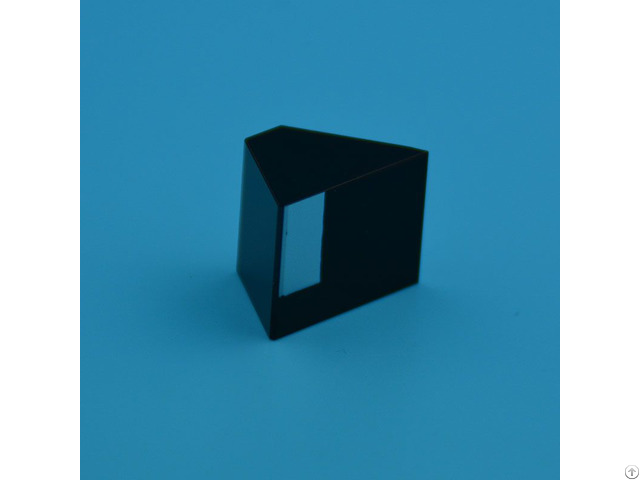

High Precision Dove Prism - China

Dove Prism

Prisms

Optical Components

High Precision Dove Prism, BK7 Glass Dove Prism, Fused Silica Dove Prism Supplier China

PARAMETER:

Dove prisms have an unusual and very interesting characteristic, if you look through the prism and rotate it around a longitudinal axis, the image rotates through twice the angle through which the dove prism itself rotates.

For optimal peformance, use dove prisms with collimated light.

Specification Material BK7 glass / Fused Silica

Dimension tolerance + 0.0 / -0.2mm

Deviation 3arc min.

Flatness Clear aperture >85%

Surface quality 60/40, 40/20

Bevel 0.1mm ×45°

Products List Type No.

Size(A×B×C×D)

DP-0.5 0.5mm×2.1 mm×0.5 mm×0.7mm

DP-1.0 1.0 mm×4.2 mm×1.0 mm×1.4mm

DP-2.0 2.0 mm×8.4 mm×2.0 mm×2.8mm

DP-3.0 3.0 mm×12.6 mm×3.0 mm×4.2mm

DP-5.0 5.0 mm×21.4 mm×5.0 mm×7.0mm

DP-10 10.0 mm×44.0 mm×10.0 mm×14.1mm

DP-15 15.0 mm×64.0 mm×15.0 mm×21.2mm

DP-20 20.0 mm×81.3 mm×20.0 mm×28.3mm

DP-25 25 mm×105.7 mm×25.0 mm×35.4mm

Company Contact:

• Posted By: ChangChun BRD Optical co., Ltd

• Phone: 8643181884163

• Address: No.399 Bo Cai Road, High-Tech Industrial Development Area, Changchun, Jilin, China 130012, Changchun , Jilin , China

• Email:

• Website: https://www.ecoptik.net

• Business Description: Changchun BRD Optical Co., Ltd was founded in 2000, and is located in the city of Changchun-the optic base of China with a beautiful view and profound optical culture.

  We have state-of-the-art, modern technology machines for manufacturing and inspecting all kinds of precision optics.

  Our company occupies an area of 1, 500 square meters, supported by 82 workers, including three technical engineers and two dedicated optical engineers.

  In the aspect of technology, we benefit from the backbone of Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences and Changchun University of Science and Technology.

  We also usually make technical exchange with each other.

  Referring to the manufacture equipment and checking equipment of products, most of them are adopted from abroad including coating machine, sphericity interferometer, optical spherometer and others.

  It can detect the optical components exactly and increase the production levels.

  We also comply with a standard of DIN, MIL, ISO surface quality standards in the aspect of production layout and production design.

  For many years, we were focusing on manufacturing and selling precision optics with high quality.

  We mainly deal with optical lenses, prisms, windows, filters, cylindrical lens, aspherical lens, mirrors, quartz glass, ZnSe, CaF2 and others.
