K9 Quartz Sapphire Zinc Ge Si Optical Window - China

Hanzhong Brisun Optics Co., Ltd. Is the high High precision optical element manufacturer provides customized production of Various optical lenses, including spherical lens, cylindrical lens, optical window, mirror, prism, filter, metal base mirror and other high-precision optical elements.

The base materials include various optical glass, fused quartz, calcium fluoride (CaF2), zinc selenide (ZnSe), germanium (GE), silicon (SI), sapphire, metal and other materials.

And provide antireflective film, high reflection film, spectroscopic film, metal film and other optical coatings.

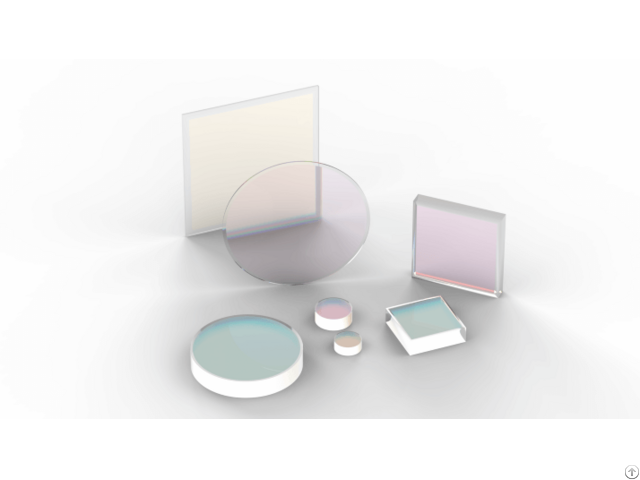

The window slice is used to separate the environment on both sides, such as separating the interior and exterior of the instrument, so as to isolate the interior and exterior of the instrument from each other, so as to protect the internal devices.

Window slice is a basic optical element and an optical flat plate.

It will not change the optical magnification and only affect the optical path in the optical path.

Important parameters of window slice: transmittance, surface accuracy, thickness, parallelism, base material and other attributes.

Window slice suitable for parameters can be selected according to specific application.

Borisun optics can provide high-precision window slices of various materials, such as zinc selenide window slice, germanium window slice, silicon window slice, barium fluoride window slice and calcium fluoride window slice applied in infrared spectrum band; Fused quartz window and sapphire window used in ultraviolet spectrum; K9 window film applied in visible spectrum band, etc.

We have a large stock of standard products in stock.

At the same time, we can also customize optical windows according to specific needs.

Technical parameters:

Material: optical glass, H-K9L (N-BK7), quartz

Radius of curvature: ± 1mm - ± 50000mm ± 1%

Outer circle: 3mm-500mm ± 0.1mm

Center thickness tolerance: ± 0.05mm (we can process to ± 0.01mm with high precision)

Center deviation: 3�?�(we can process to 30 �?�with high precision)

Surface accuracy: λ/ 8 (high precision, we can process to 1 / 10λ)

Surface quality: 60/40 (we can process to 10-5 with high precision)

Effective caliber: �?�90%

Coating: according to the customer requirements In addition, we have thousands of kinds of stock, such as quartz plano convex lens, quartz plano concave lens, quartz biconvex lens, quartz biconvex lens, cylindrical lens, prism, filters, windows, beamsplitter and so on.

The price is preferential and the quality is excellent, which can meet your demand for a small order.

If you are interested it, welcome to inquiry us or search "Hanzhong Borisun Optics Co., Ltd "to know about more details.
