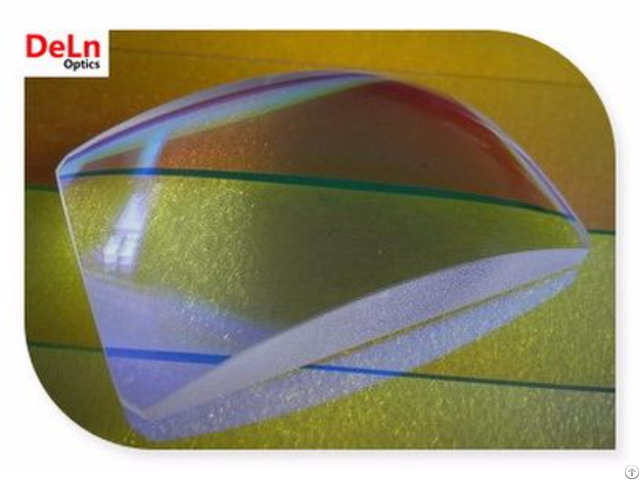

Optical Lenses Lens Delnoptic Com - China
price: contact company for price
Lenses have many applications ranging from the simple collection of the scanning of laser beams to precise imaging and image transfer.
DELN can provide all kinds of spherical and cylindrical lenses, usually we can offer.
Spherical: Rectangular, circular, plano-convex, plano-concave, double-convex, double-concave, meniscus, achromatic, dome lens, rod lens, ball lens, half ball Cylindrical: Rectangular, circular, plano-convex, plano-concave, achromatic Assembly: Doublet, triplet, customer designed special lens kit Mixture: One side spherical, the other side cylindrical Usually lenses are not only used in visible band, but also in IR band and UV band, that means special material should be used.
Now, DELN can offer lenses made of various materials such as CaF2, MgF2, Sapphire, Silicon, Germanium, ZnSe and etc.
DELN can also provide various coatings for lenses upon your request.
Specifications Dimension And Tolerance 1mm to 500mm, +0/-0.1mm Thickness Tolerance ±0.2mm Radius Tolerance ±0.5% Surface Quality 60/40 scratch and dig or better Power(fringe@633nm) 3 Irregularity(fringe@633nm ) 0.5 Centration <3 arc minutes Focal Length Tolerance ±2% Clear Aperture >90% Chamfer Protective <0.5mmx45deg
Company Contact:
- Posted By: Changchun Deln Optics Technology Co., Ltd.
- Phone: 431-81973695
- Address: #59, YuanDa St.,, Changchun , JiLin , China
- Email:
- Website: http://www.delnoptic.com
Published date: June 14, 2017
- Business Description: Manufacturer lenses, mirrors, optical filters, beamsplitters, prisms, waveplates, infrared parts, crystals, reticles, microlens array, phase plate and diffraction optics.
China.
