Optical Multiple Order Waveplates

Products Photos Catalog Optical Multiple Photos Catalog

Multiple order Waveplates

Multiple order waveplates(Low Order Waveplate) are made from a single crystalline plate, are designed to give a retardation of several full waves, plus the desired fraction.

Multiple order waveplates are more susceptible to change in wavelength and they should not be used more than several nanometers outside of design wavelength.

Specifications:

Type: Half Waveplates Quarter Waveplates

Material: Crystal Quartz

Dimension Tolerance: +0.0, -0.1mm

Surface quality: 20/10

Clear Aperture: >90%

Wavefront Distortion: λ/8@632.8nm

Parallelism: <1 arc sec

Retardation tolerance: λ/300

Coating: AR/AR coating , R<0.2% at central wavelength

Standard wavelengt: 266nm, 355nm, 532nm, 632.8nm, 780nm, 808nm,

850nm, 980nm, 1064nm, 1310nm, 1480nm, 1550nm

Typical Sizes:

Size(mm) Size(mm)

Φ5.0 φ20.0

φ10.0 φ25.4

Φ12.7 φ30.0

Φ15.0 φ38.1


Company Contact:


  • Phone: 865927629198

  • Address: Xiamen Export processing Zone, Xiamen , China

  • Email: Email

Published date: March 31, 2013

  • Business Description: Xiamen DND optics co ltd specilizes in manufacturing photonics

    products.

    The company grows an excellent team of experienced engineers

    and skillful starffs.

    That leads to our higher quality and lower cost

    of products.

    The products including Optical and Crystal components, have been applied to telecommunication, non contact inspection, infrared sensors, precision instruments, semiconductor, micro measuring systerms, medical and scientific research equipments etc.

    To be equiped with many advaced processing equipments and metrology instruments, the company can provide our customers with superior quality and timely delivery of products, which range over Beam Splitters, Laser Crystals, NLO Crystals, Birefringent Crystals, Waveplate, Coatings, Polarizing OPtics, Optical Lenses, windows, mirrors, filters, prisms and other optical components with Sapphire, Quartz, MgF2, CaF2, Ge, Silicon etc.

    DND industrial is dedicated to satisfy with customer's request.

    We always sell products with high quality, timely delivery, low cost.

Related listings

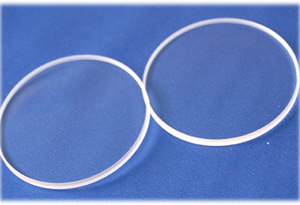

  • Optical Zero Order Waveplates
