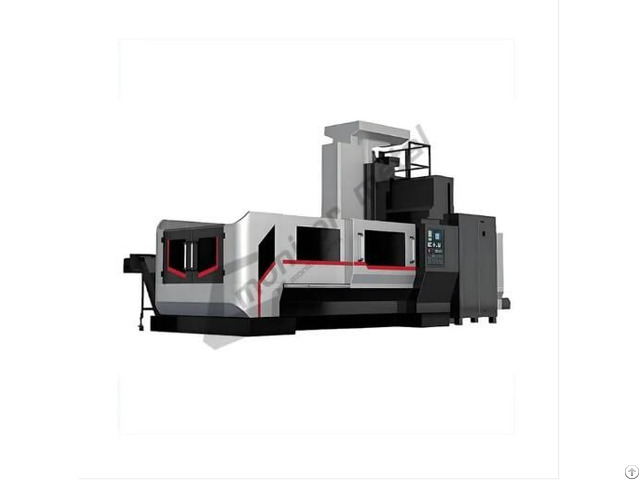

GMC1213 three-wire CNC Portal Machining Center

CNC gantry machining center is the core equipment of high-end precision manufacturing.

It adopts gantry frame structure design and is particularly suitable for efficient precision machining of large and complex parts.

This series of products combines German advanced technology with localized manufacturing advantages to meet the needs of high-end manufacturing fields such as aerospace

three-wire CNC Portal Machining Center Features

1 - The basic parts are made of high-strength cast iron, box-type structure, compact and reasonable symmetrical rib structure to ensure the high rigidity and bending and shock absorption performance of the basic parts.

2 - The X and Y guide rails are imported heavy-duty linear rails (8 sliders in the X direction), with the characteristics of fast speed, high rigidity, low friction, low noise, low temperature rise change, etc: The Z position is a rectangular sliding guide, which is high-frequency quenched and precision ground.

The sliding guide surface is covered with composite PTFE material and precision scraped, and automatic forced lubrication is used to improve the accuracy, life and rigidity of the machine tool.

3 - The spindle box is equipped with a nitrogen balance device to achieve automatic synchronous balance.

The X, Y and Z directions use high-rigidity double-nut pre-loaded C3-level large-lead ball screws with high feed speed.

4 - High-speed, high-precision, high-rigidity heavy-duty Feng axis units produced by professional manufacturers in Taiwan are used.
