Brand Name: BOGDA; Capacity: 100-500KG/H; Certification: CE ISO SGS; Automatic Grade: automatic

Product Descirption

Project 1

Single-screw extrusion line for pvc corner profile: feeding materials are pvc granules and can produce 1cavity, 2cavities.

Project 2

Conical twin-screw extrusion line for pvc corner profile: Input materials are pvc powder to mix with stabilizer, caco3, CPE and can produce 1 cavity, 2 cavities, 4 cavities and so on.

PVC Corner Profile Production Line is used for produce pvc corner profile, such as "H Joint Corner" "F Edge Corner" "Internal/External Corner Trim" "Functional Corner".

They are used in conjunction with pvc ceiling panels, for securing the panels.

Also this production line can produce pvc angel bead

Technical Parameter

PVC corner profile production line consist of Mixer→double-screw extruder→mould→vacuum calibration spraying platform→haul-off machine→blade cutter→stacker

Hot & cooling mixer Body materila: stainless board Mixing time: 15-20min Heating/cooling method: Electric heating /water cooling Main motor power: 30/42kw &11kw

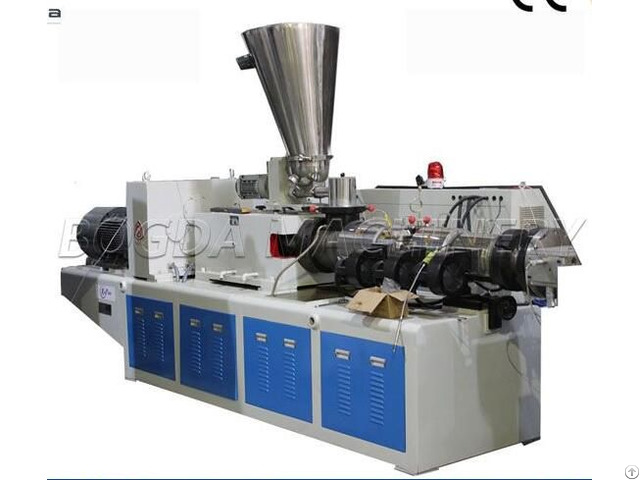

Conical twin screw extruder Screw diameter: ⌀51mm and ⌀105mm Screw barreel material: 38CrMoALA Rotational speed: 1-36r/min Main power powder: 18.5kw

Corner profile molds Mould include: mould-die+calibra tor+water tank

Vacuum calibration & water tank Center height: 1000mm Vacuum pump: 4kw*1set Water pump: 3kw*1set

Haul off machine Motor: 1.1kw*2sets Clamping type: flat caterpillar

Cutting machine Motor: 3kw Cutting knife: saw knife structure

Stacker Length: 4000mm Material: stainless
