Model Number: BG-SJZ51 Corner bead 1: Internal corner bead 95C Hole Punching: Working online Corner Bead: Straight and hard enough

Model Number: BG-SJZ51

Corner bead 1: Internal corner bead 95C

Hole Punching: Working online

Corner Bead: Straight and hard enough

Final PVC protection corner bead introduce

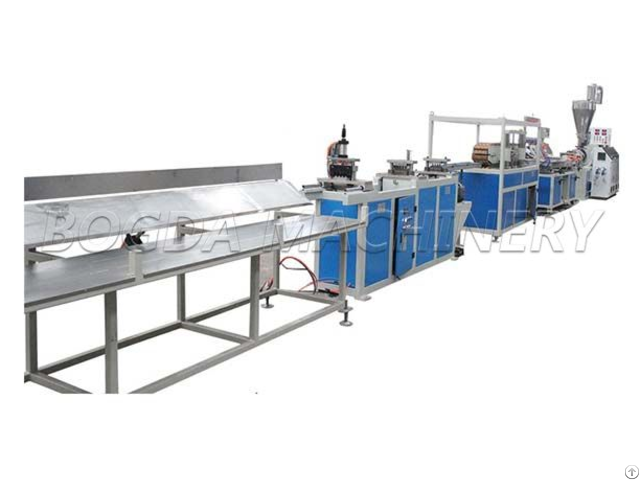

PVC plastic protection corner bead production line for drywall.

PVC corner bead also named PVC wall corner, PVC drywall corner, PVC angel bead, etc.

PVC plastic protection corner bead include internal corner and external corner beads, which is specially design to protect the doorside strips, wall corners, window corners.

During operation, it's coated with fiberglass mesh together, which can solve corner problem, like not straight, not flat, easy damaged, popular used in indoor decorations.

Machine List

NO.

Machine Name

1 Dust collection mixer

2 Conicial twin-screw extruder

3 PVC corner bead extrusion mold + vacuum calibration table

4 Hau-off machine

5 Online punching + cutting + stracker 1- Dust collection heat and cold mixer

Heating temperature: 120-130 degree

Mixing time: 15 mins per batch

Cooling method: by water round inner top of batch

Cooling temperature: 40-50 degree

2- PVC corne beads extrusion parts

Powder feeding loader

Main extruder machine

PVC corner bead molds

Vacuum calibrating table
