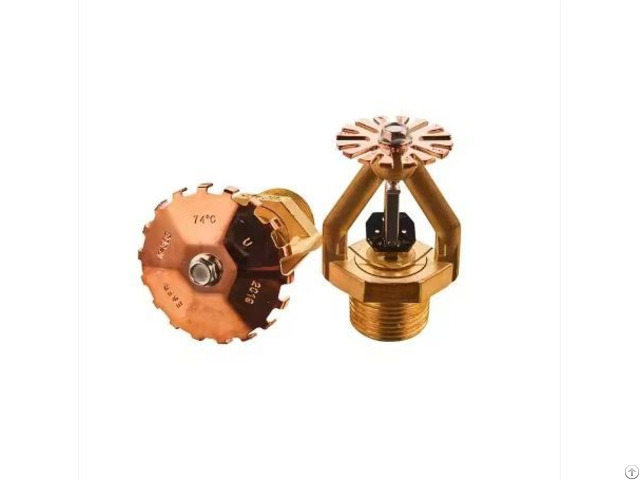

Esfr Fire Sprinkler - China

Technical Parameters

Size: ESFR-363/74(101)℃ Early Suppression Fast Response fire sprinkler.

Flow rate K factor: K=363

Diameter: DN25 Connection screw: R1”

Max working pressure: 1.2 Mpa

Working temperature: 74℃

Installation way: pendent/upright

Brief Information

The nozzle has a k=363 flow coefficient and the special design of splash water dish, make a large diameter nozzle jet, high -energy droplets and sphere form is under water.

This feature makes the water droplets in the cooling by fire early formation of hot air at the same time can penetrate the flame, direct cooling burning body, therefore the nozzle to protect high crib warehouse goods have special advantages.

The nozzle is mainly used to protect the most ordinary materials coated or no effect of packaging, including cartons of plastic foam products, such as maximum lift goods is 12, 2 meters, can also be used for cylinder packaging paper products and the use of rubber tire warehouse.

The requirement between installation height and pressure water

Max Room Height(M) Max Goods Height(M) Water Pressure(Mpa)

9.1 7.6 ≥0.1Mpa

10.7 9.1 ≥0.14Mpa

12.2 10.7 ≥0.17Mpa

13.7 12.2 ≥0.27Mpa
