Miaxis Sm 62ut Capacitive Fingerprint Module - China

Miaxis SM-62UT Capacitive Fingerprint Module Fingerprint Authentication Modules Biometric OEM Module

OVERVIEW:

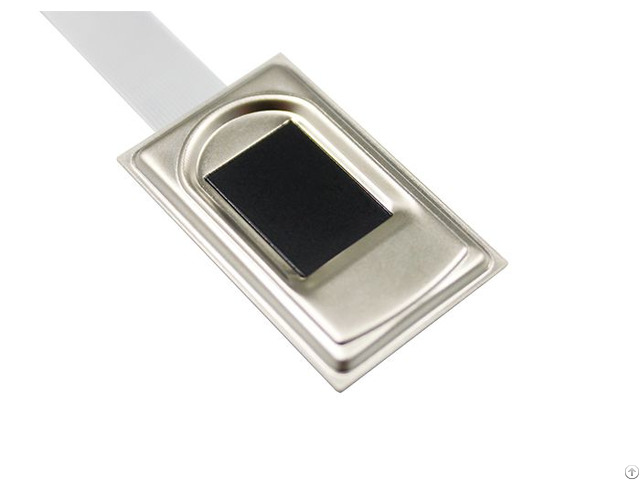

Miaxis SM-62UT is a standalone Capacitive Fingerprint Module, consisting of semi-conductor fingerprint sensor, low power consumption & high-performance ARM core processor and FLASH etc chips.

The module supports on-board fingerprint image processing, template extraction, fingerprint matching (including 1: 1 and 1: N), template storage and other functions.

FEATURES:

• 508 dpi resolution

• 1: 500 identification time < 1sec

• Live finger detection

• Power control function for for embedded applications to turn-on/off module

• Touch wake-up function

custom Biometric scanner SPECIFICATION:

Specification SM-62UT

CPU 108MHz, Cortex-M4

Flash memory 512KB

(Expandable up to 4MB)

Board Size(L x W x H) 35.0× 30.0× 7.5mm

Sensor Size(L x W x H) 33.4 x 20.4 x 3.6mm

Sensor type Capacitive

Active platen area 9.6 x 12.8mm

Image Size 192*256 pixel

Image resolution 508dpi

Grey scale 8 bit (256 levels)

Power-on time ≤200ms

Enrollment time

(Finger touch to template) ≤200ms

1: 1 Verification time* ≤200ms

1: N Matching time <1s, N=500

FAR ≤0 - 001 %

FRR ≤1.5 %

Template size 810 bytes default

Fingerprint capacity 500 templates

(3, 000 at 4MB)

Live finger detection Yes

ESD immunity ±8kV contact discharge

±15kV air discharge

Supply voltage DC 4.3V-7.0V

Supply current ≤100mA

Supply current Sleep mode ≤10uA

Communication interface UART

Operating Temperature -20°C to +60°C

Storage Temperature -30°C to +75°C

Operating humidity 20%RH～90%RH

Note: the 1: 1 verification time* is calculated based the time of input template matched to the stored template.

The company is Chinese's industry-leading developer and manufacturer of biometric system and fingerprint recognition algorithm.

Based on over 18 years of industry experience and we are the key vendor of fingerprint scanner for Chinese resident ID card program approved by the ministry of Public Security.
