Drive In Pallet Racking - China

Drive in Pallet Racking

Warehouse Pallet Racking

Industrial Storage Racking System

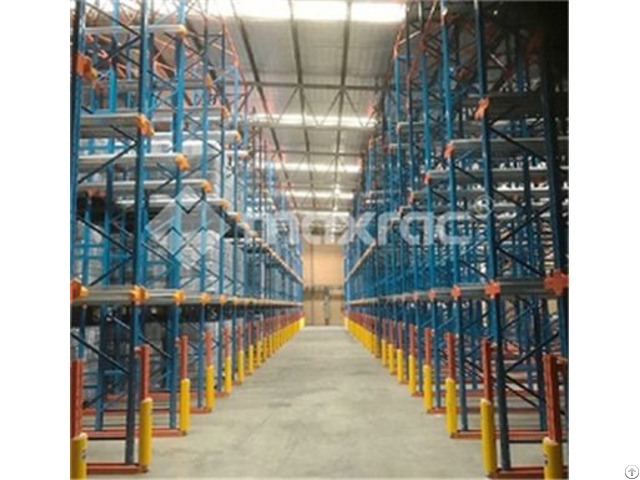

Drive in racking system is frequently used for a great number of pallets of similar SKU or item.

It’s ideal solution to increase the utilization of your warehouse space.

The system storage space can be used up to 75%-85% more availably than selective pallet racking.

Drive in racking also often used in cold storage or freezer racking which per cubic meter has expensive cost require maximum use of warehouse space for storing goods

There are two types of drive in racking system available:

Drive in racking: base on FILO principle, only one access aisle

Drive through racking: base on FIFO principle, pallets can be loaded or retrieved from both side

Advantage:

High density storage 一 Stored more pallets per cubic meter than conventional pallet racking system

Low stock rotation 一 Perfectly suitable for seasonal goods and fluctuating stock demand

Used for bulk storage of identical products and cold storage

Suitable for easily damaged or fragile loads, which cannot be stacked one on top of the other

Specification:

Upright 80x70, 90x70, 105x70, 120x85mm

Hole Pitch 76.2mm, 50mm, 50.8mm

Box Beam size 80x50, 90x50, 100x50, 110x50, 120x50, 130x50, 140x50, 160x50

Upright Thickness 1.8/2.0/2.5/2.75/3.0 mm

Beam Thickness 1.8/2.0/2.5/2.75/3.0 mm

Frame Height Up to 12000mm

Beam Length Up to 6000mm

Capacity per layer 500-4000KG

Finsh Powder coating (different color acceptable) or hot dip galvanizedon request

FAQ:

Please inform us of the following information for quick racking solution:

Length of rack or bays wide

Depth of rack or pallet deep

Level of rack

Height of each level

Pallet size

Loading capacity of per pallet
