Railway Head Profile Grinding Machine - China
price: contact company for price

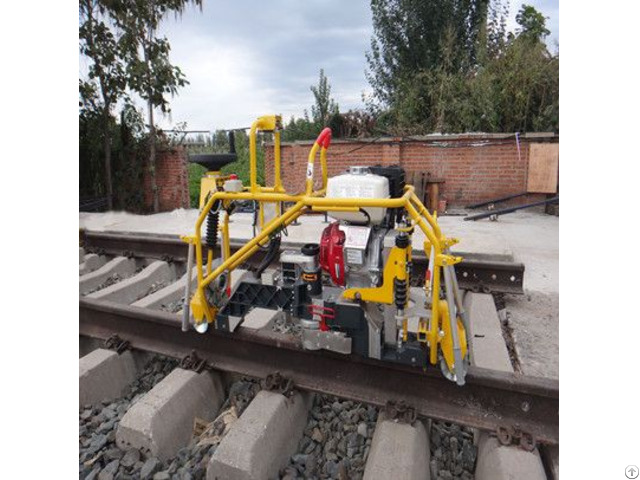

NGM-5.1 Rail Profile Grinding Machine
This machine is mainly used for forming and grinding operations of railway rail welding joints and rail surface repairs.
The
development and application of the CNC feed unit realizes the intelligent control of the grinding wheel feed.
Significantly
improve the profiling accuracy and polishing efficiency.
BENIFITS
● Angle of the grinding head is set using an adjustment wheel, lowering/raising of the grinding stone is electrically contlled
● Equipped with spark protection device
● Equipped with electric control system prevents over grinding by limiting the lowering of the grinding stone
● Grinds the whole head of rail in one single operator, no need to turn the machine or to handle it
Specification
Model
NGM-5.1
Type
Rail Profile Grinding Machine
Material
Stainless Steel
Dimensions (L x W x H) (mm)
1500 * 450 * 750 mm
Engine
HONDA GX270
Power
5.1 kW
Grinding wheel specifications
φ125x65 mm
Feeding accuracy
0.1 mm
Turning angle of grinding stone
±90°
Spindle revolution
4100r/min
Grinding stone feeding stroke
42 mm
Profile wheel span
1000 mm
Weight
100 kg
Weight of supporting rod
14 kg
Company Contact:
- Posted By: Wuhan Linkage Track Equipment Co.,Ltd
- Phone: 15925241229
- Address: 1007, Block B, Building 1, Modern Service Base, Huagong Science Park, Daxueyuan Road, Donghu New Tec, wuhan , Hubei , China
- Email:
- Website: http://linkagetrack.com/
Published date: May 14, 2024
- Business Description: Wuhan Linkage Track Equipment Co,Ltd is a professional manufacture of an extensive range of equipment for the railway industry.
Linkage Group strive to provide One-Stop service for global railway maintenance.
Our company has expanded its operation to three branch office , location facilitates in Xiangyang ,Wuhan and Guangzhou,China.
We export to over 60 countries,like Alstom ,Hitachi Rail,Colas Rail ,ETF, CCR METRO,BHP ,VALE,and EFE etc.
